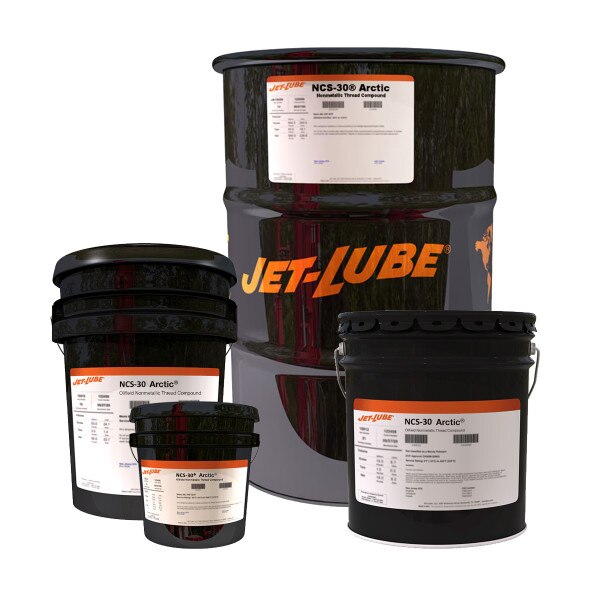

NCS-30 ARCTIC

Nonconductive Thread Compound

NCS-30 ARCTIC is a premium quality, nonmetallic, non-conductive compound containing natural extreme pressure and anti-wear additives. These are blended into JET-LUBE's all-weather calcium complex base grease. This base grease offers the additional advantage of low temperature application and service, superior adhesion to wet steel surfaces, resistance to water wash-off, and most drilling muds. NCS-30 ARCTIC offers the same protection as regular NCS-30, but at lower service temperatures.

Designed for optimum performance on all Rotary-Shouldered connections such as Tool Joints and Drill Collars. It can also be used on premium/proprietary thread designs such as Double-Shouldered, Wedge Thread™*, and other types of mechanical seal designs. It may also be used on certain non-interference tubing thread designs when properly torque compensated. For a “Yellow”-rated product, use NCS-30 ECF.

Benefits:

• Excellent performance on high-chrome or nickel alloys
• Contains no metals
• Extreme-pressure additives provide additional protection against seizing & galling
• Non-conductive for MWD applications
• Provides maximum protection on Wedge Thread* drill string connection designs
• High frictional properties ideal for casing drilling applications
• Pumpability makes it ideal for HDD and other construction drilling applications

Specifications:

• Base Materials: Calcium Complex / Petroleum
• Friction / Nut-Factor: 1.15 (drill strings) (relative to API RP 5A3 Annex I)
• Service Rating: Oilfield/Mining/Construction Drilling / -40°F to 350°F (-40°C to 177°C)
  Industrial Anti-seize Applications / -65°F to 2600°F (-54°C to 1427°C)
• Certifications: NSF-61 Certified / Conforms with API RP 5A3 for use with rotary shouldered connections
