ForFluids Drum Filter Cart 2 GPM

(0)No Reviews yet
SKU: FFDCDA-2

Details

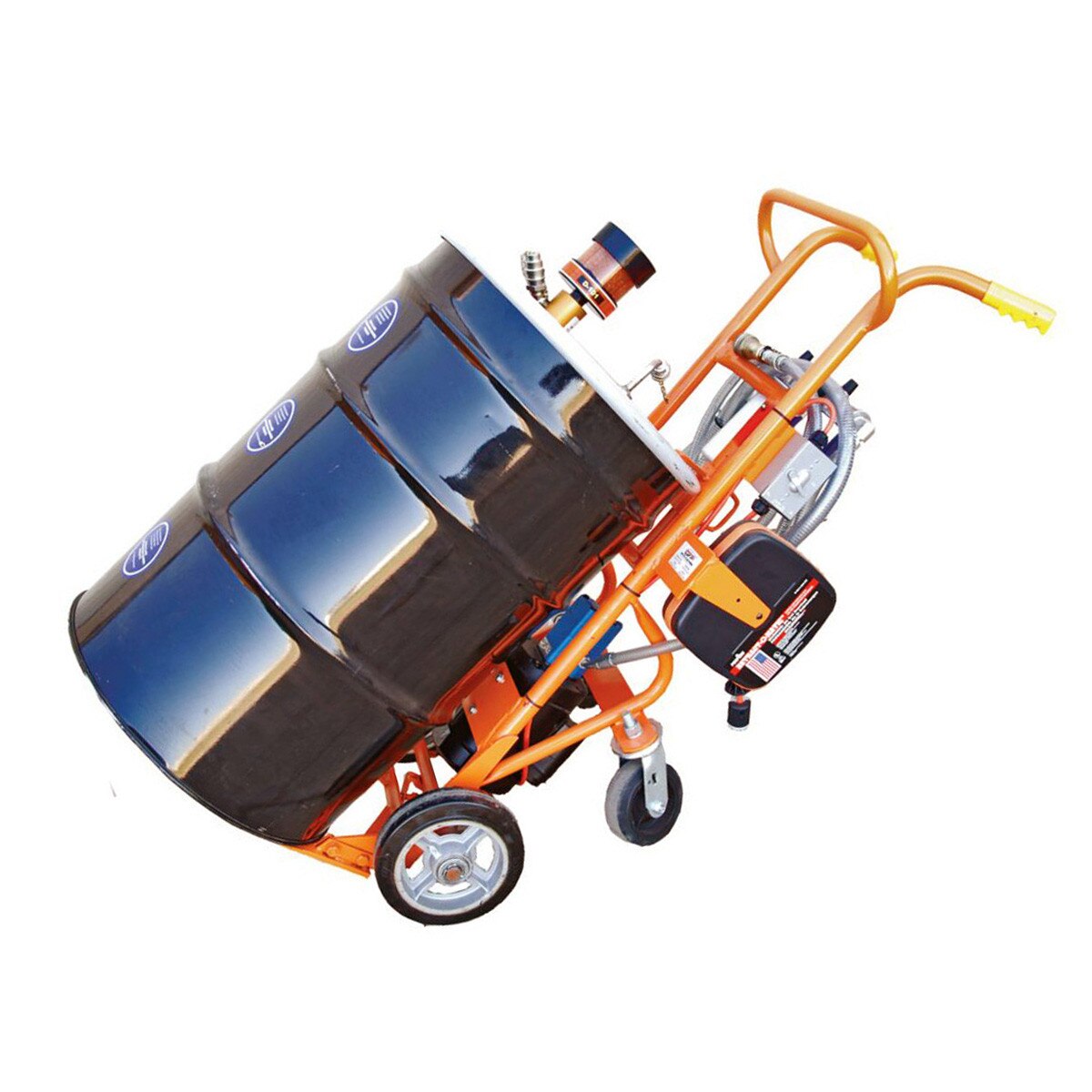

All-in-one convenience is what the Drum Filter Cart is all about. The simple practicality of this cart allows the operator to dispense and filter oil out of a 55 gallon drum on wheels. A magnetic kickstand adds stability and ensures the drum will not tip over. The drum filter cart has ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All cart products are 100% customizable upon request.

Typical Applications:

Pre-filtering new oil
Transferring oil
Topping off reservoirs
Dispensing new oil


Standard Features:

Frame: Carbon Steel; two hard rubber tires and two swivel casters
Paint: Multiple color options available
Motor: 1 HP, 115vac, 60Hz or Pneumatic
Filter Heads: Medium pressure, cast aluminum heads
Pump: 2 GPM Heavy duty, cast steel gear pump.
Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
Cord Reel: 40' Retractable electric cord reel


Replacement Elements:

FF1066: 4 Micron BETA 2000 filter element
FF1065: 7 Micron BETA 2000 filter element
FF1063: 10 Micron BETA 1000 filter element
FF1064: 25 Micrron BETA 2000 filter element
FF1048WR: Water Removal Element


Weight: Approx. 175 LBS
Dimensions: L 23" x W 21" x H 59"


Ships via truck freight


Click here for a detailed product data sheet. (PDF)
