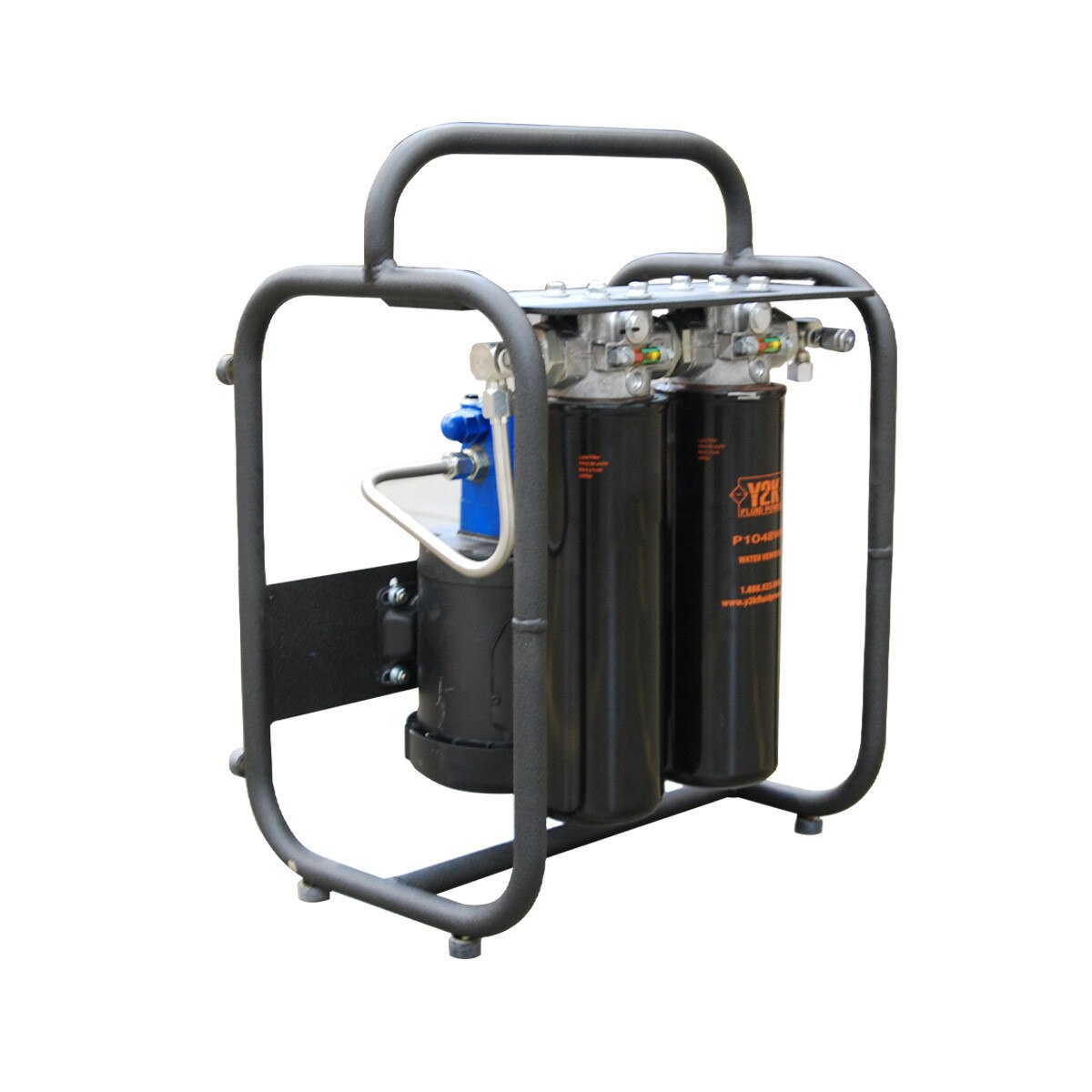

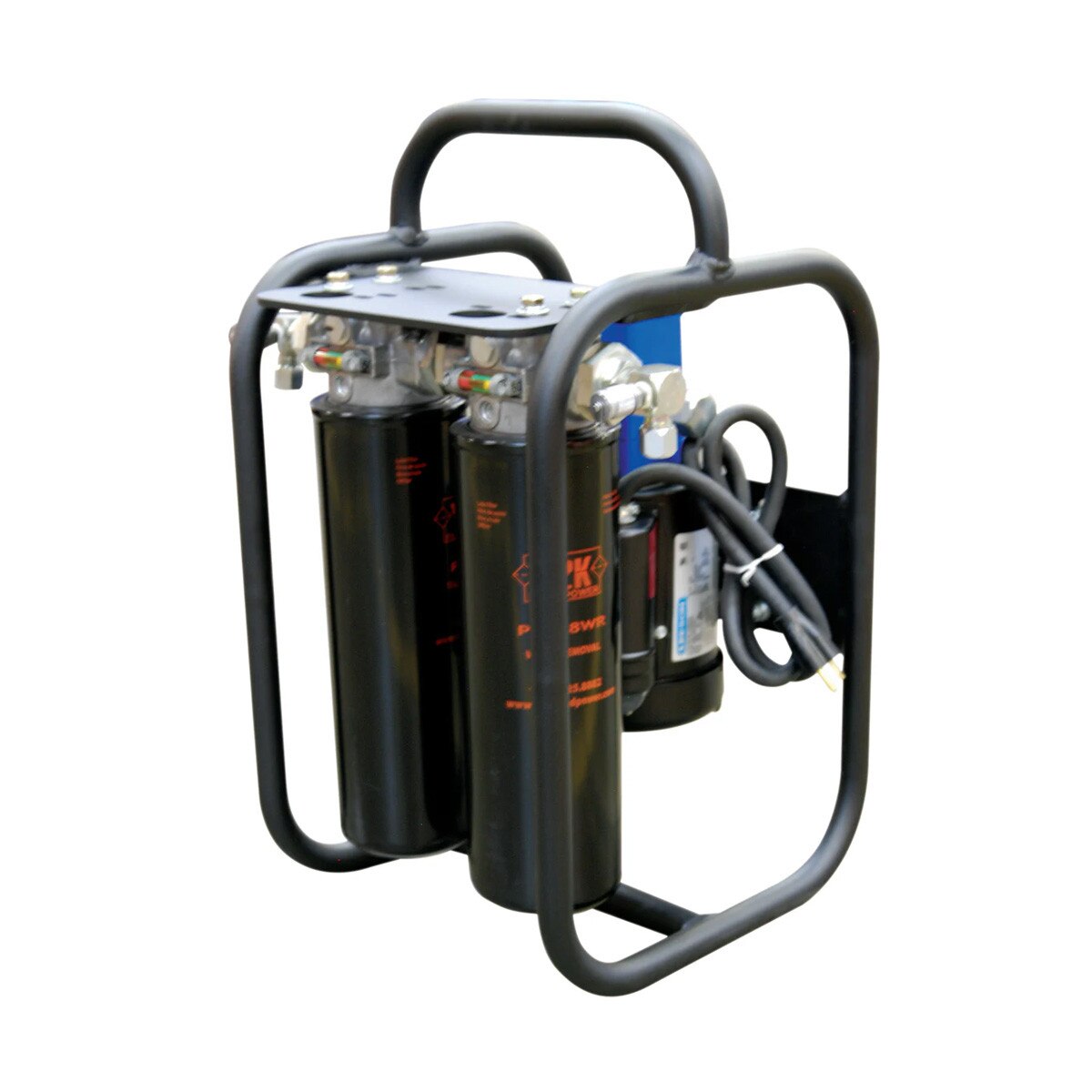

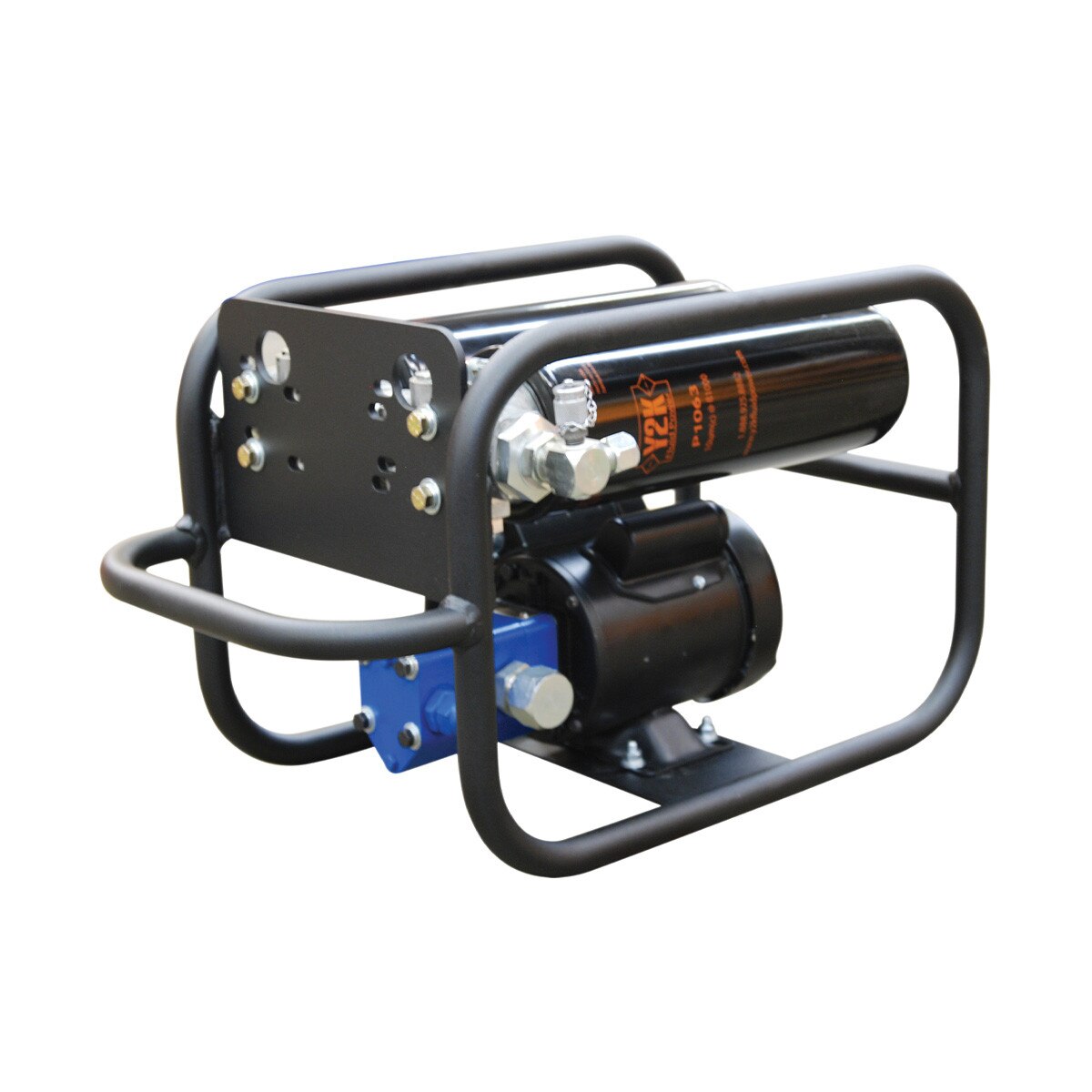

ForFluids Custom Drum Topper

Compact and portable, the Y Series Drum Topper is designed to fit perfectly on top of a 55-gallon drum. When portability and convenience is of the utmost importance, the Drum Topper has your back. With the ability to be used horizontally or vertically, our drum topper is the most versatile in the industry. It has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F.

Typical Applications:
• Pre-filtering new oil
• Transferring oils
• Topping off reservoirs
• Dispensing new oil

Standard Features:
• Frame: Heavy duty aluminum frame
• Paint: Multiple color options available
• Motor: 1/4 HP, 1/2 HP, & 1 HP, 115vac, 60Hz or Pneumatic
• Filter Heads: Medium pressure, cast aluminum heads
• Pump: Heavy duty, gear pump. Available in 1, 2, 5, 10 GPM
• Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
• Cord Reel: 4' electric cord

Replacement Elements: FF1066: 4 Micron BETA 2000 filter element
FF1065: 7 Micron BETA 2000 filter element
FF1063: 10 Micron BETA 1000 filter element
FF1064: 25 Micrron BETA 2000 filter element
FF1048WR: Water Removal Element

Weight: Approx 40 LBS
Dimensions: L 15.5" x W 16" x H 24"

Click here for a detailed product data sheet. (PDF)
