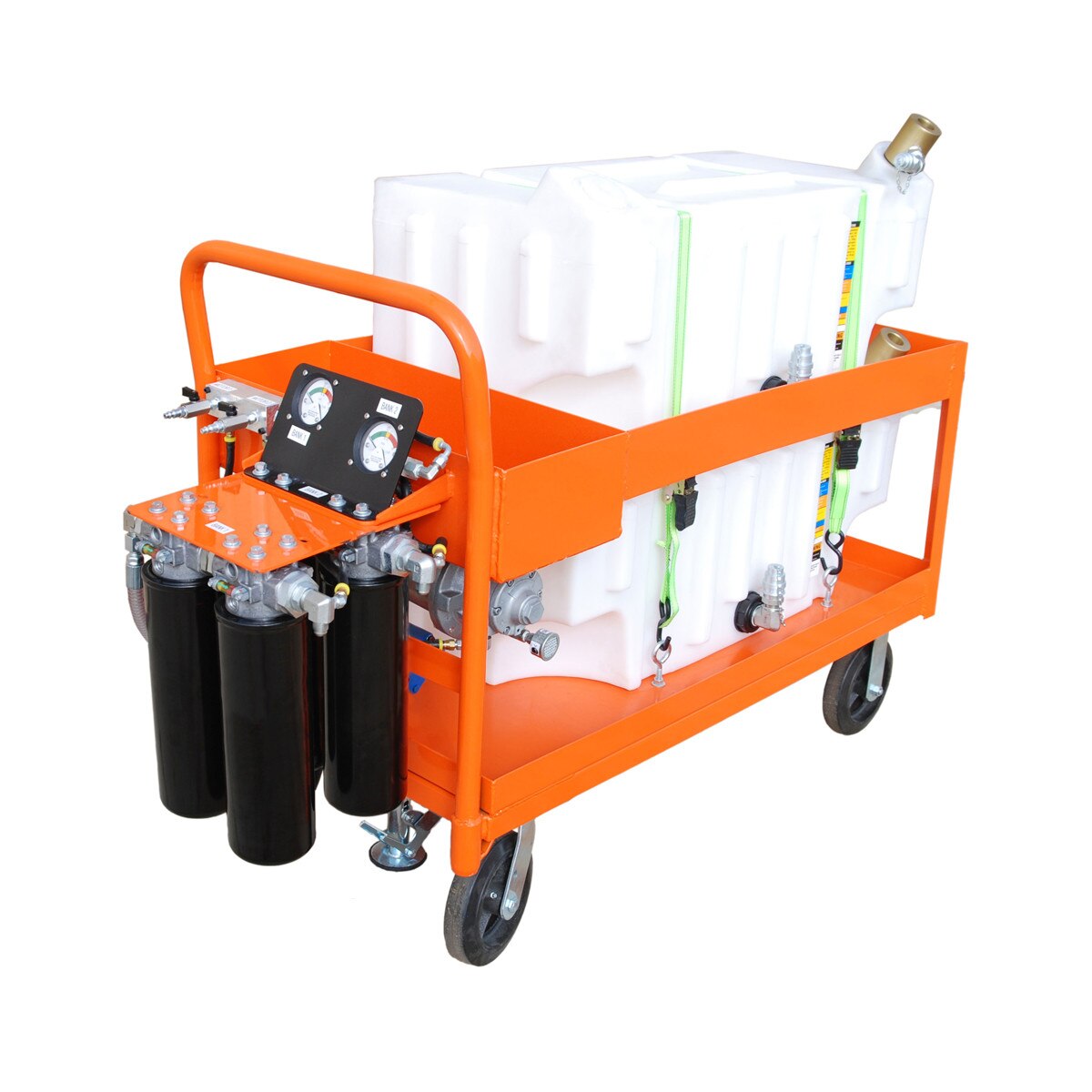

ForFluids Platform Cart Two 32 Gallon - 2 GPM
Details
Getting oil from bulk or drum storage and out into the plant is made convenient and easy with the Platform Cart. Designed to accommodate various tank configurations, the platform cart can be used to deliver multiple oil types to their final destination. An optional oil rack and toolbox makes storage of essential equipment and tools easy to transport. The platform cart has all the power needed for filtering oil viscosity up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All platform cart products are 100% customizable upon request.
Typical Applications:
- Pre-filtering new oil
- Transferring oil
- Topping off reservoirs or container
- Dispensing new oil
- Waste oil extraction
Standard Features:
- Frame: Carbon Steel platform frame with drip pan and utility tray
- Paint: Multiple color options available
- Tanks: (2) 32 Gallon Tanks
- Motor: 1 HP, 115vac, 60Hz or Pneumatic
- Filter Heads: Medium pressure, cast aluminum heads
- Pump: 2GPM Heavy duty, cast steel gear pump.
- Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
- Cord Reel: 40' Retractable electric cord reel
Replacement Elements:
- FF1066: 4 Micron BETA 2000 filter element
- FF1065: 7 Micron BETA 2000 filter element
- FF1063: 10 Micron BETA 1000 filter element
- FF1064: 25 Micron BETA 2000 filter element
- FF1048WR: Water Removal Element
Weight: Approx. 275 LBS
Dimensions: Approx.: L 55" x W 24" x H 52"
Ships via truck freight
