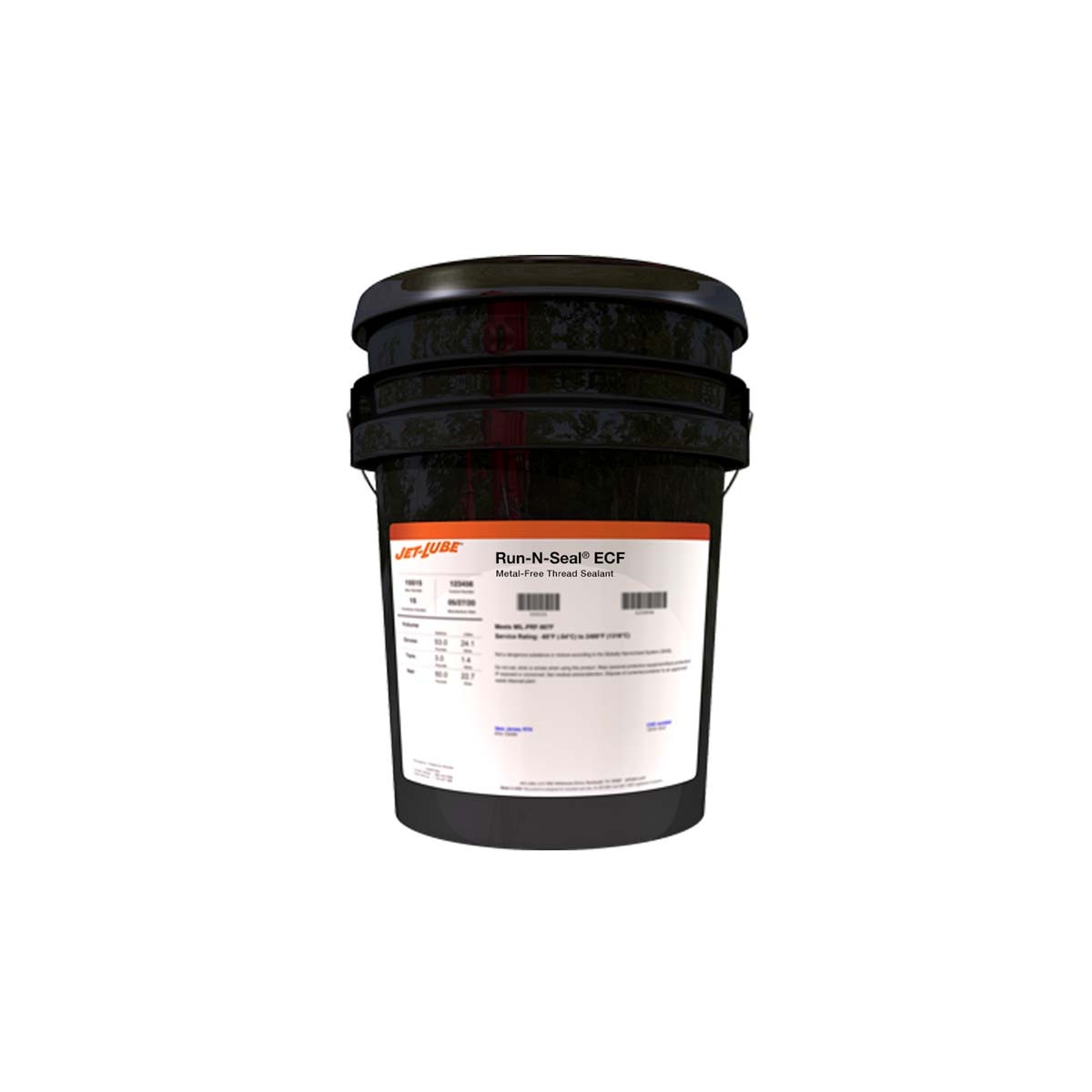

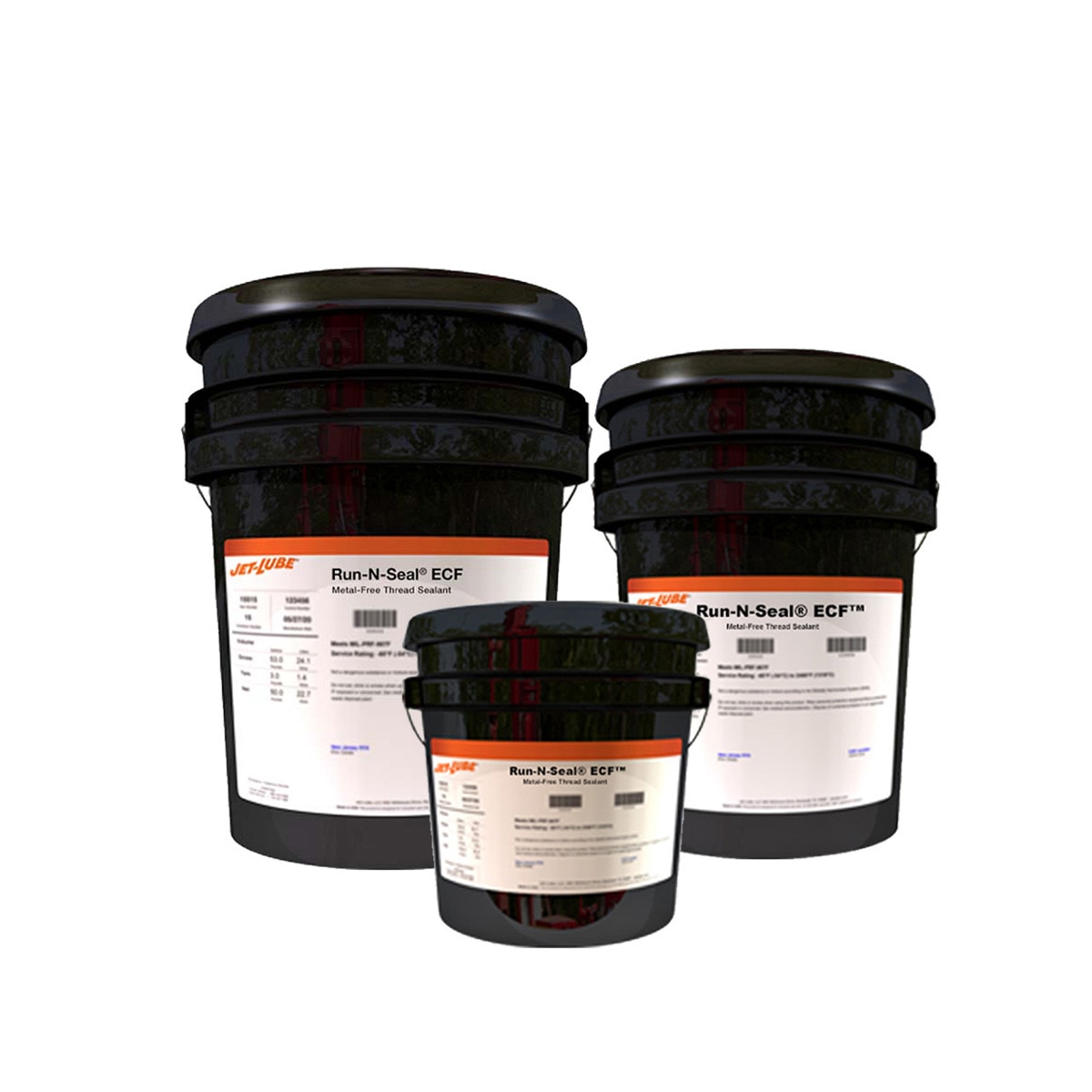

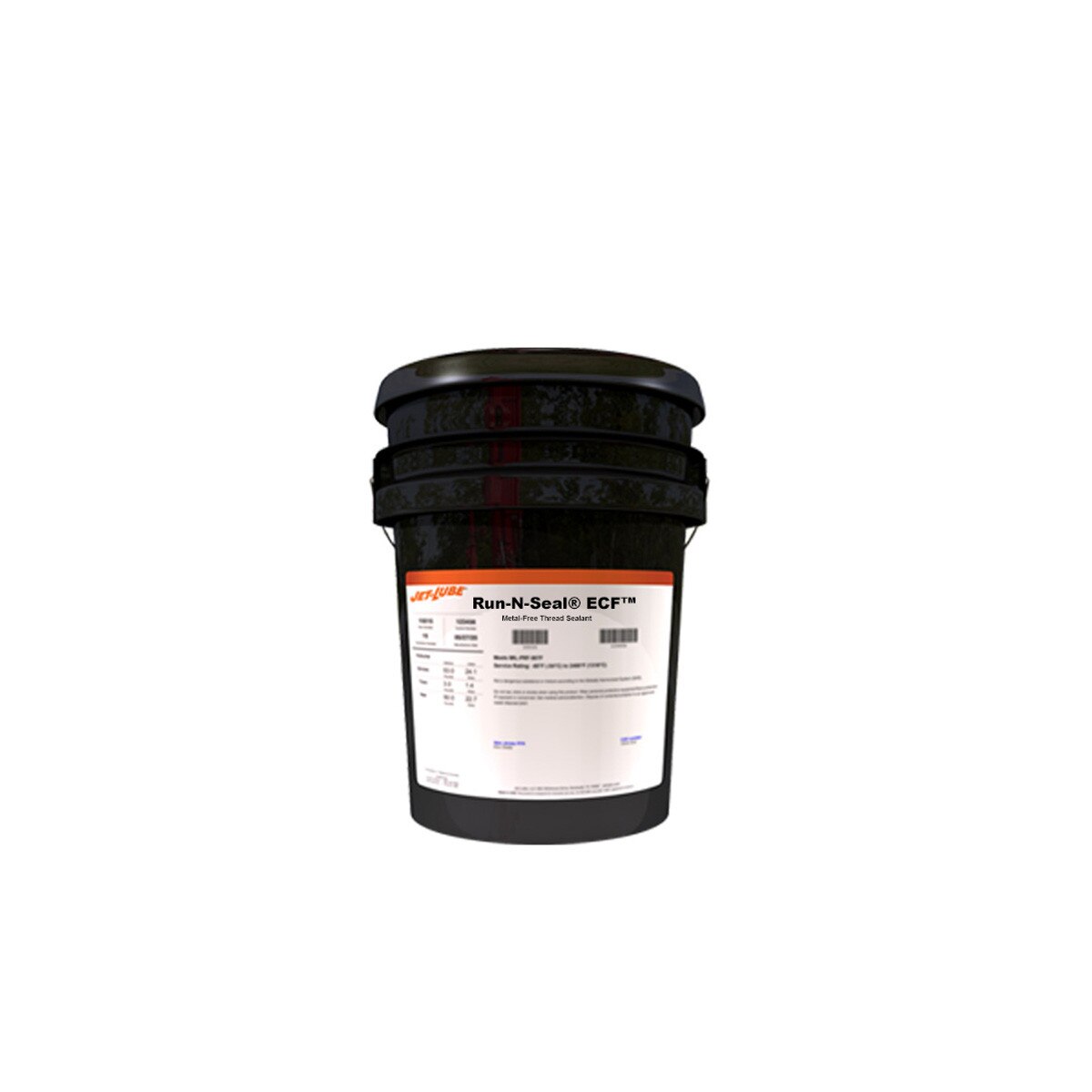

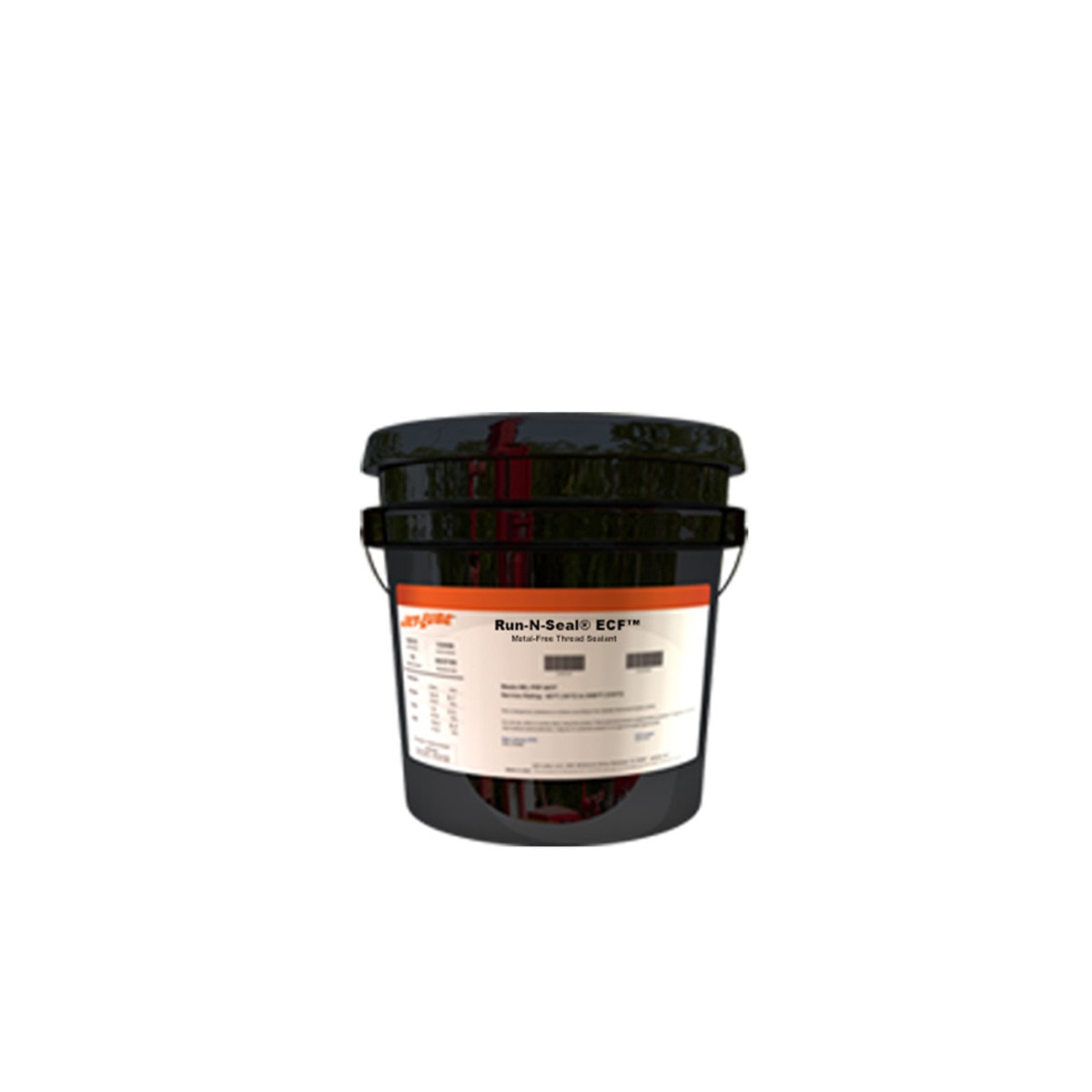

Run-N-Seal ECF

Metal-Free Thread Sealant

RUN-N-SEAL ECF is a patented metal-free, environmentally safe, high-pressure sealant alternative for API-MODIFIED on thread seal connection designs such as 8-round, buttress & DINO VAM. The compound contains unique graphite and other non-metallic, inorganic, anti-wear additives blended into a high-quality calcium complex base grease. RUN-N-SEAL ECF contains a large volume of solids enhanced by a higher concentration of large-sized particles. The improved distribution of particle sizes and volume of solids provides an excellent seal in large and small diameter, non-shouldered or thread seal connection designs. The calcium sulfonate complex grease provides a high melting point, ensures brushability over a wide range of temperatures, and has excellent inherent water & corrosion resistance. It sticks to wet and oily steel, ensuring the compound will not wash off threads.

Benefits:

• Contains additives for protection against rust, corrosion, and oxidation
• Prevents leakage (seals to 10,000 psi)
• High film strength to protect against wear, galling, and seizure
• H2S Inhibited

Specifications:

• Base Materials: Calcium Complex Soap / Vegetable & Synthetic
• Friction / Nut-Factor: 1.0 (Relative to API-MODIFIED)
• Service Rating: -20°F to 450°F / -29°C to 232°C
• Certifications:
