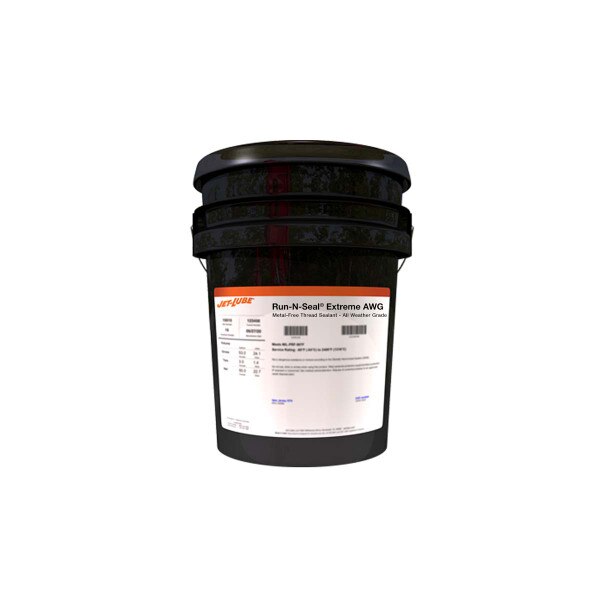

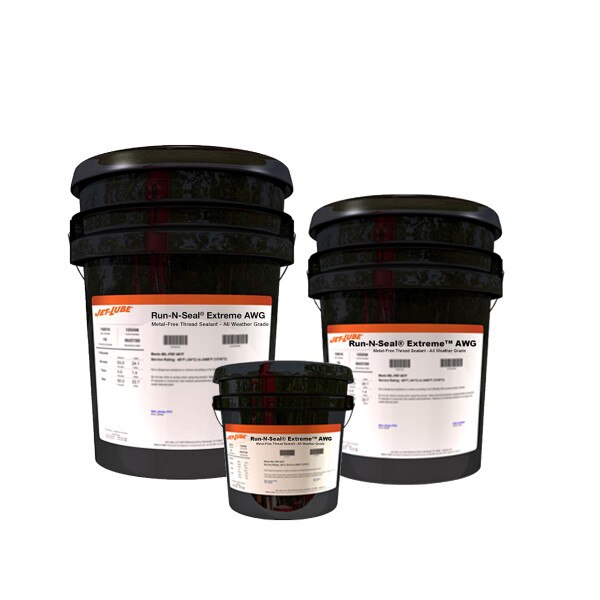

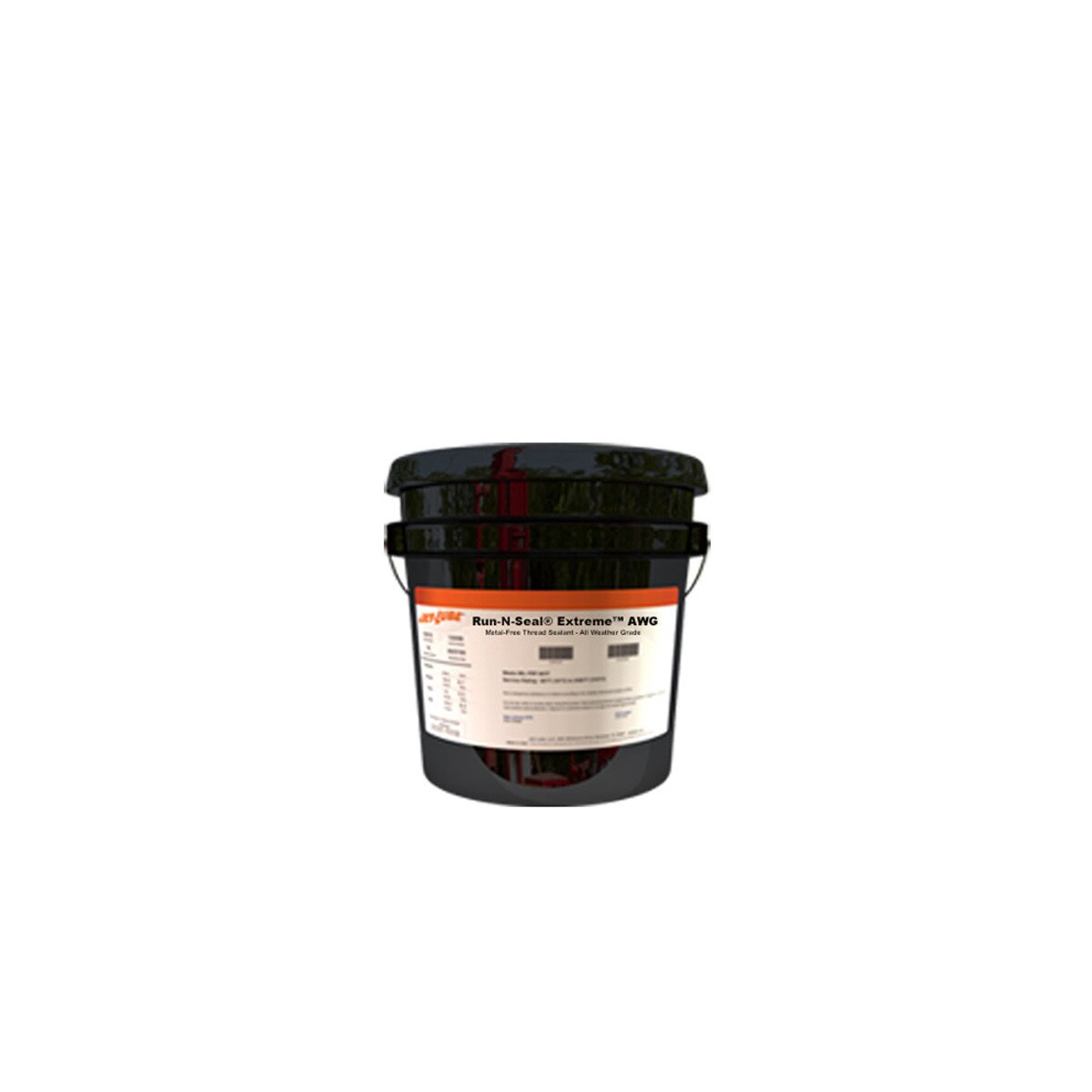

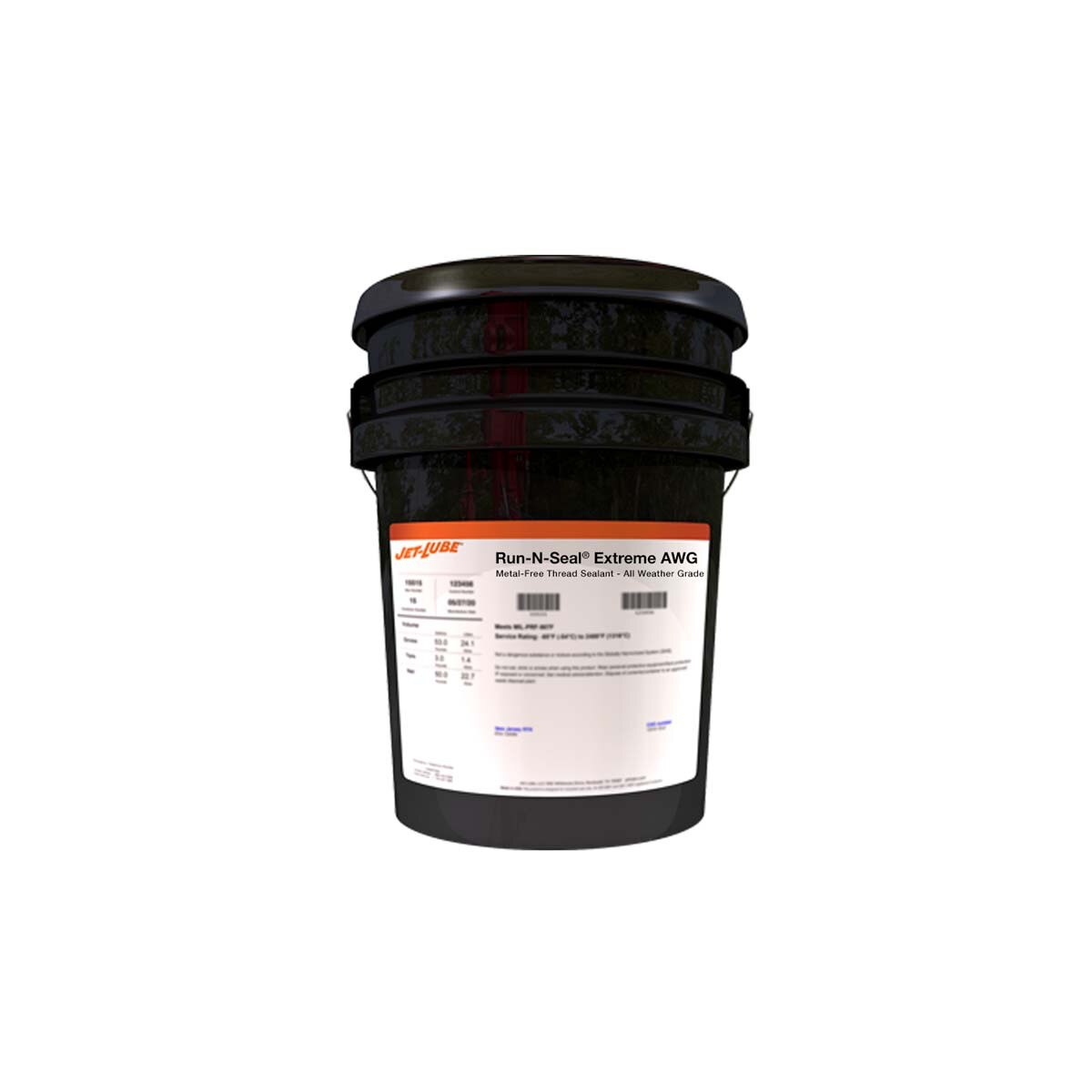

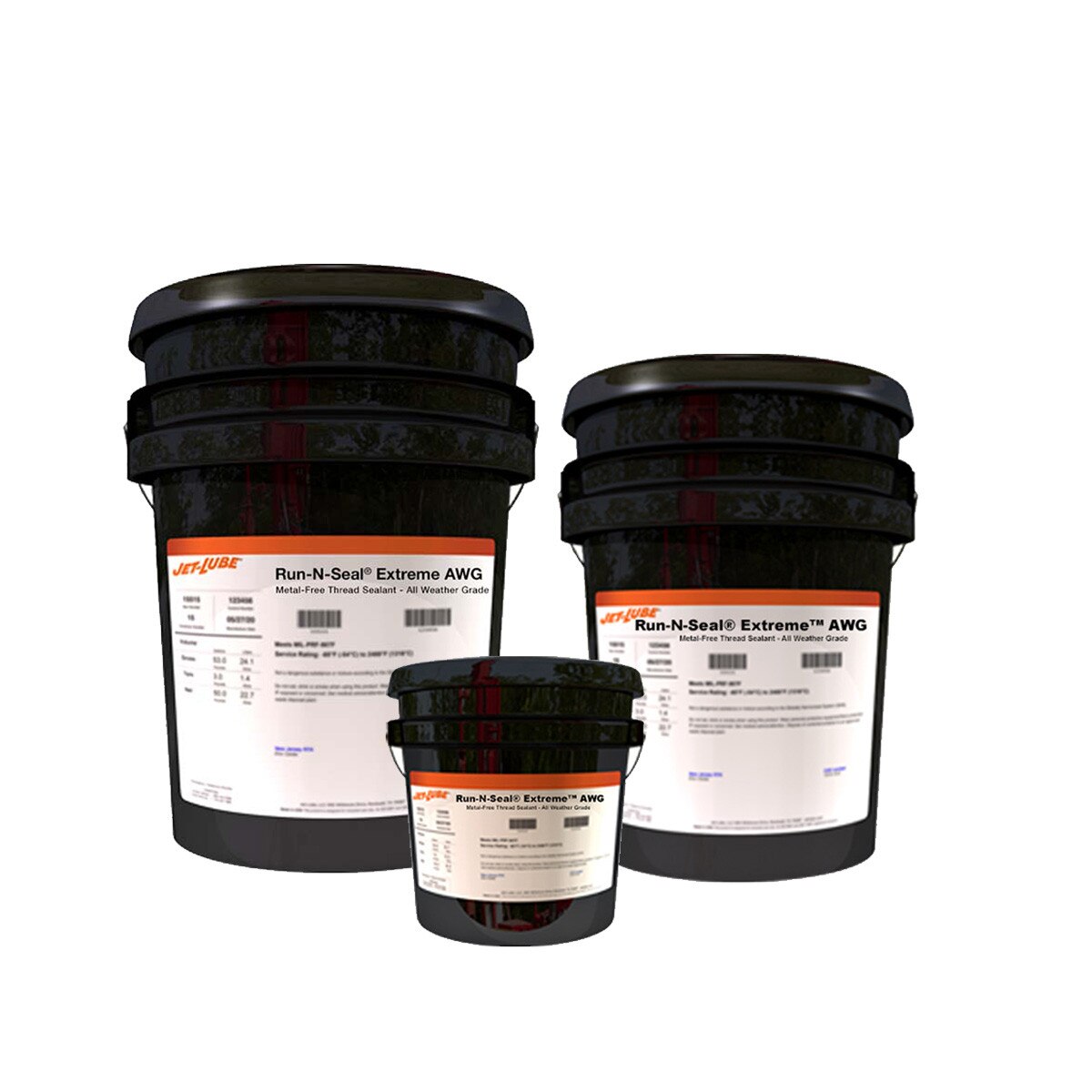

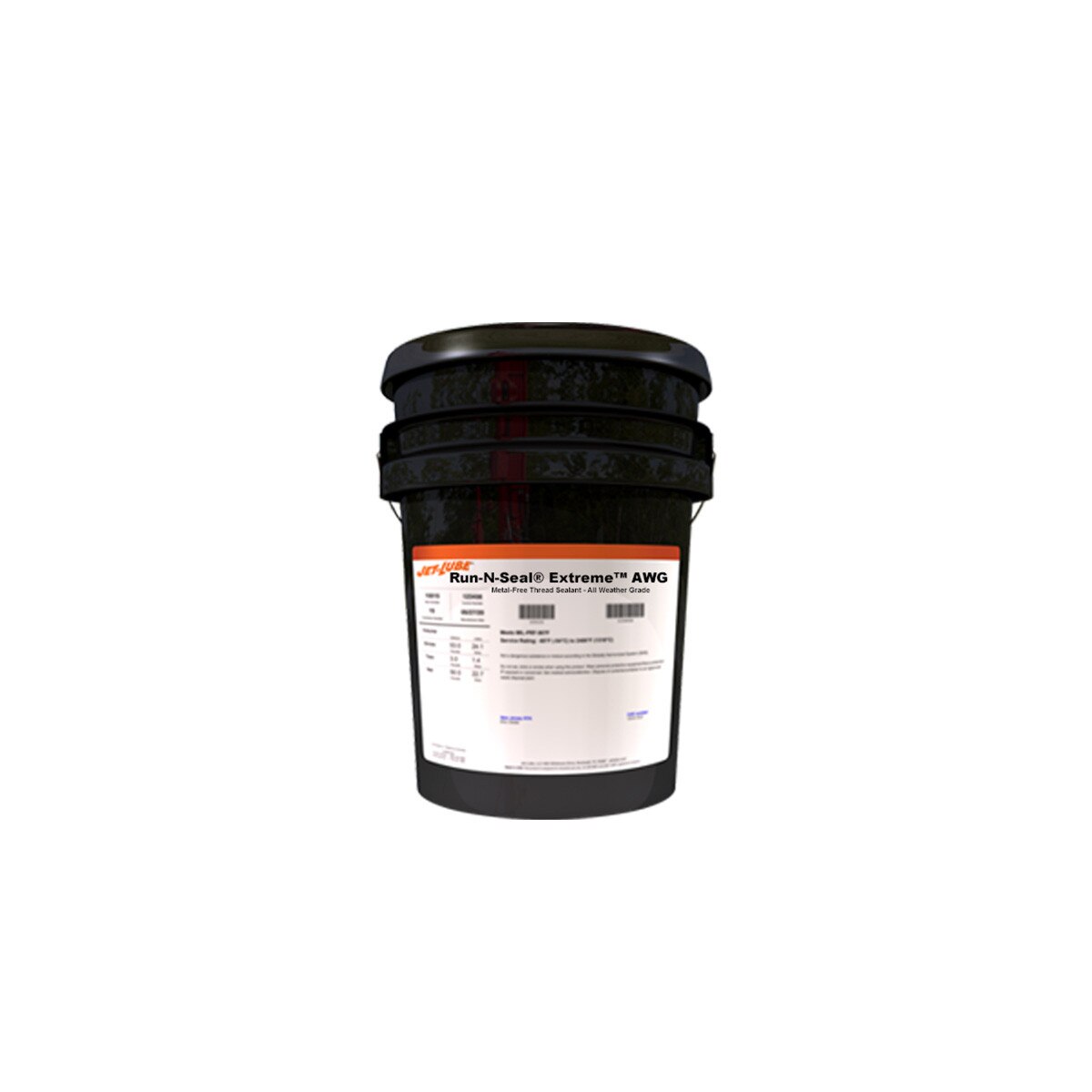

Run-N-Seal AWG

Metal-Free Thread Sealant

All Weather Grade - A patented, metal-free, high pressure sealant alternative for API-MODIFIED for OCTG 8-round and buttress connections. RUN-N-SEAL EXTREME AWG contains graphite and other non-metallic, inorganic, anti-wear additives blended into a state-of-the-art, all weather, rust inhibiting complex soap based grease. Contains a large volume of solids enhanced by a higher concentration of large-sized particles. The improved distribution of particle sizes and volume of solids provides an excellent seal in large and small diameter, non-shouldered threads. The complex soap grease provides a high melting point, ensures brushability over a wide range of temperatures and has excellent inherent water resistance.

Benefits:

• Metal-free
• Enhanced rust-inhibiting
• Non-toxic
• Contains additives for protection against rust, corrosion & oxidation
• Sticks to wet & oily steel
• All-weather
• High film strength to protect against wear, galling & seizure

Specifications:

• Base Materials: Complex Soap / Petroleum
• Friction / Nut-Factor: 0.9 (Relative to API-MODIFIED)
• Service Rating:
  -22°F to 446°F
  30°C to 230°C
  Brushable Temperature: -40°F (-40°C)
• Certifications:
  Tested for California Code of Regulations - Title 22
  Not classified as a hazardous waste
  Exceeds all of the performance criteria described in API spec. 5CT.
  Conforms with API 5A3 for use with casing, tubing, and line pipe.
