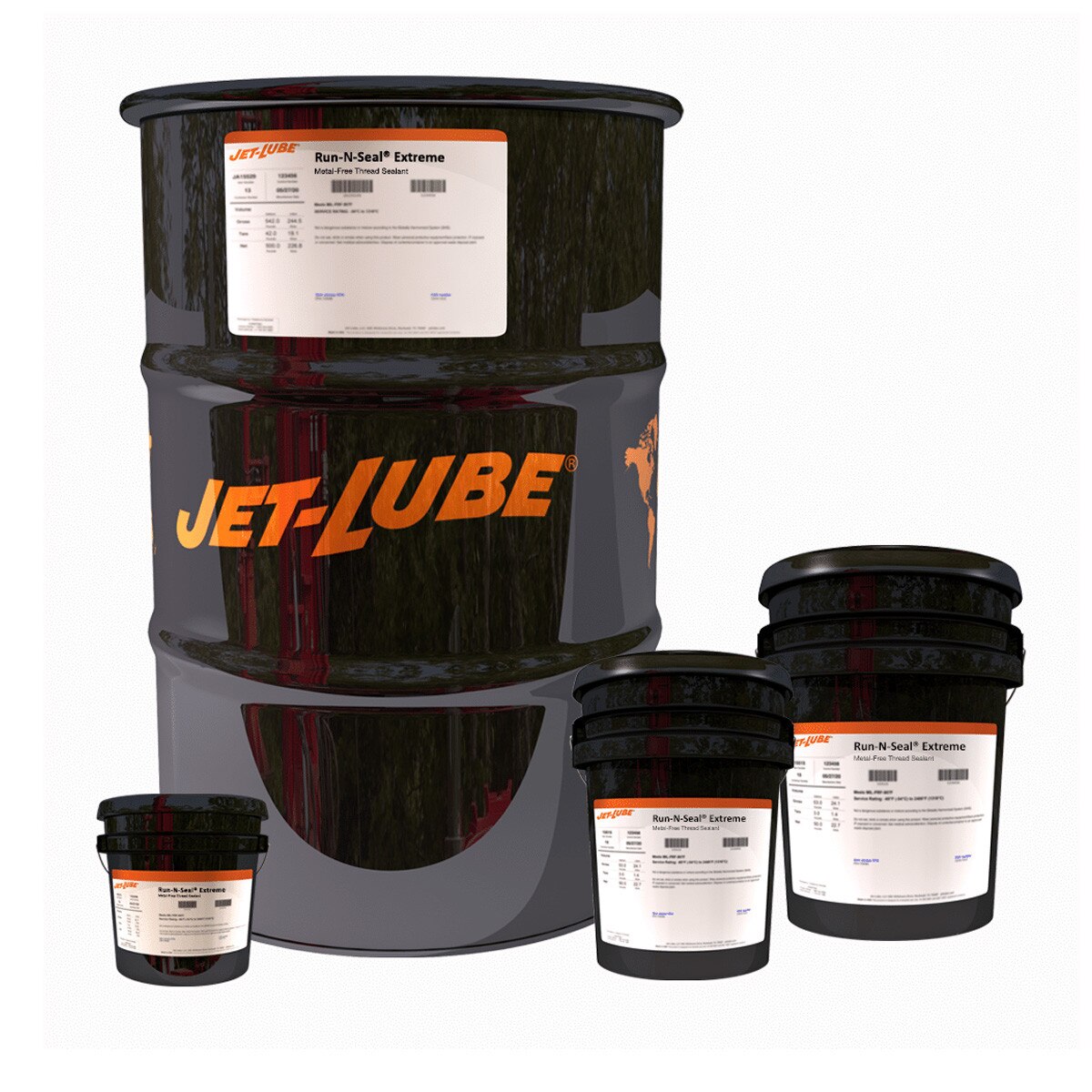

Run-N-Seal Extreme

Metal-Free Thread Sealant

A patented metal-free, high-pressure sealant alternative for API MODIFIED. RUN-N-SEAL EXTREME contains graphite and other non-metallic, inorganic, anti-wear additives blended with KORR-GUARD, a high-temperature, rust-inhibiting complex soap based grease used for storage applications for nearly 2 decades. RUN-N-SEAL EXTREME contains a large volume of solids enhanced by a higher concentration of large-sized particles. The improved distribution of particle sizes and volume of solids provides an excellent seal in large and small diameter, non-shouldered threads. The complex soap grease provides a high melting point, ensures brushability over a wide range of temperatures and has excellent inherent water resistance. Ideal tubing connections - 8-round and non-shouldered.

Benefits:

• Enhanced rust inhibiting properties
• Contains additives for protection against rust, corrosion & oxidation
• Prevents leakage (seals to 10,000 psi)
• High film strength
• H2S Inhibited
• Sticks to wet & oily steel, ensuring the compound will not wash off threads

Specifications:

• Base Materials: Complex Soap / Petroleum
• Friction / Nut-Factor: 0.9 (Relative to API-MODIFIED)
• Service Rating: -13°F to 446°F / -25°C to 230°C
• Certifications:
  Exceeds all of the performance criteria described in API spec. 5CT.

• Conforms with API 5A3 for use with casing, tubing, and line pipe.
