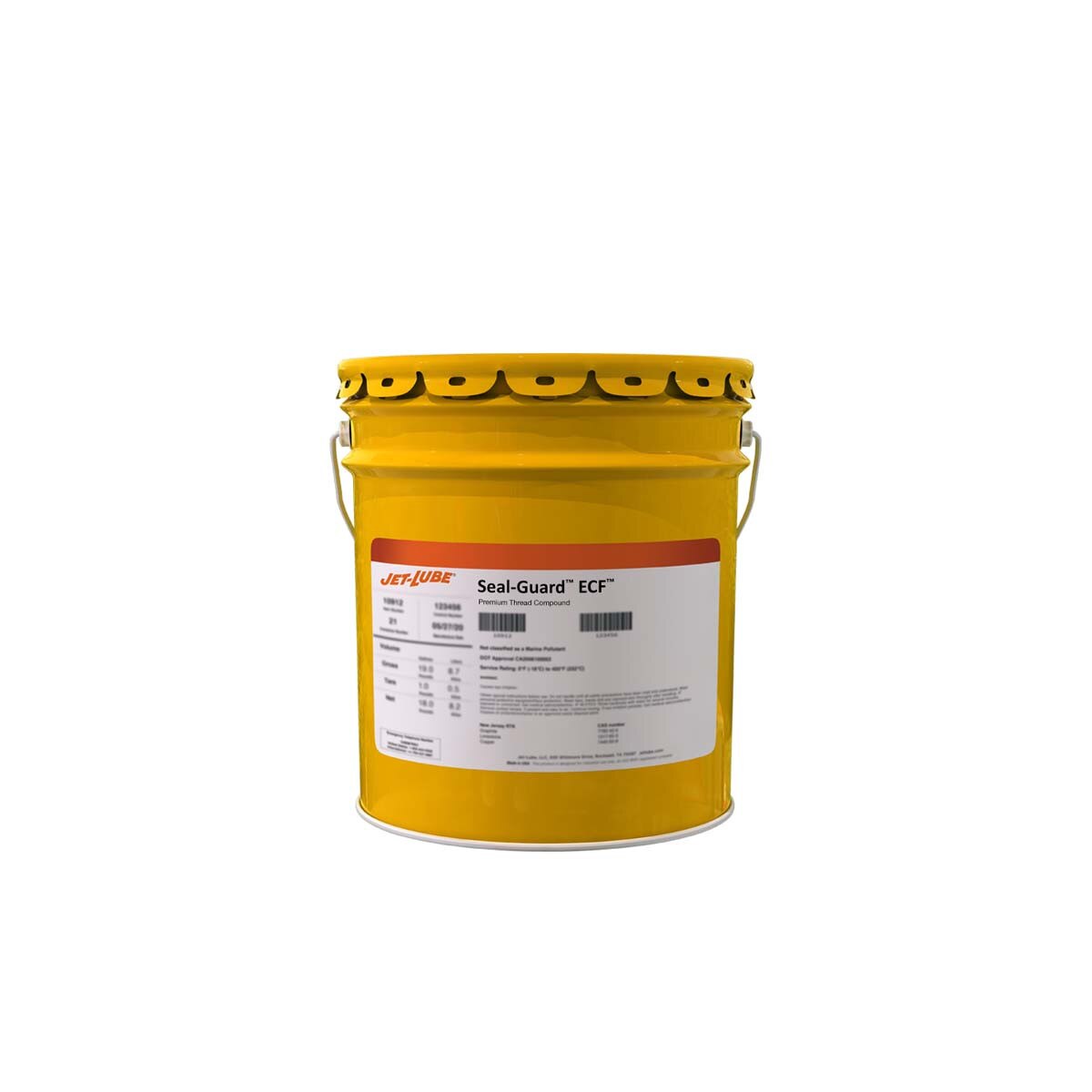

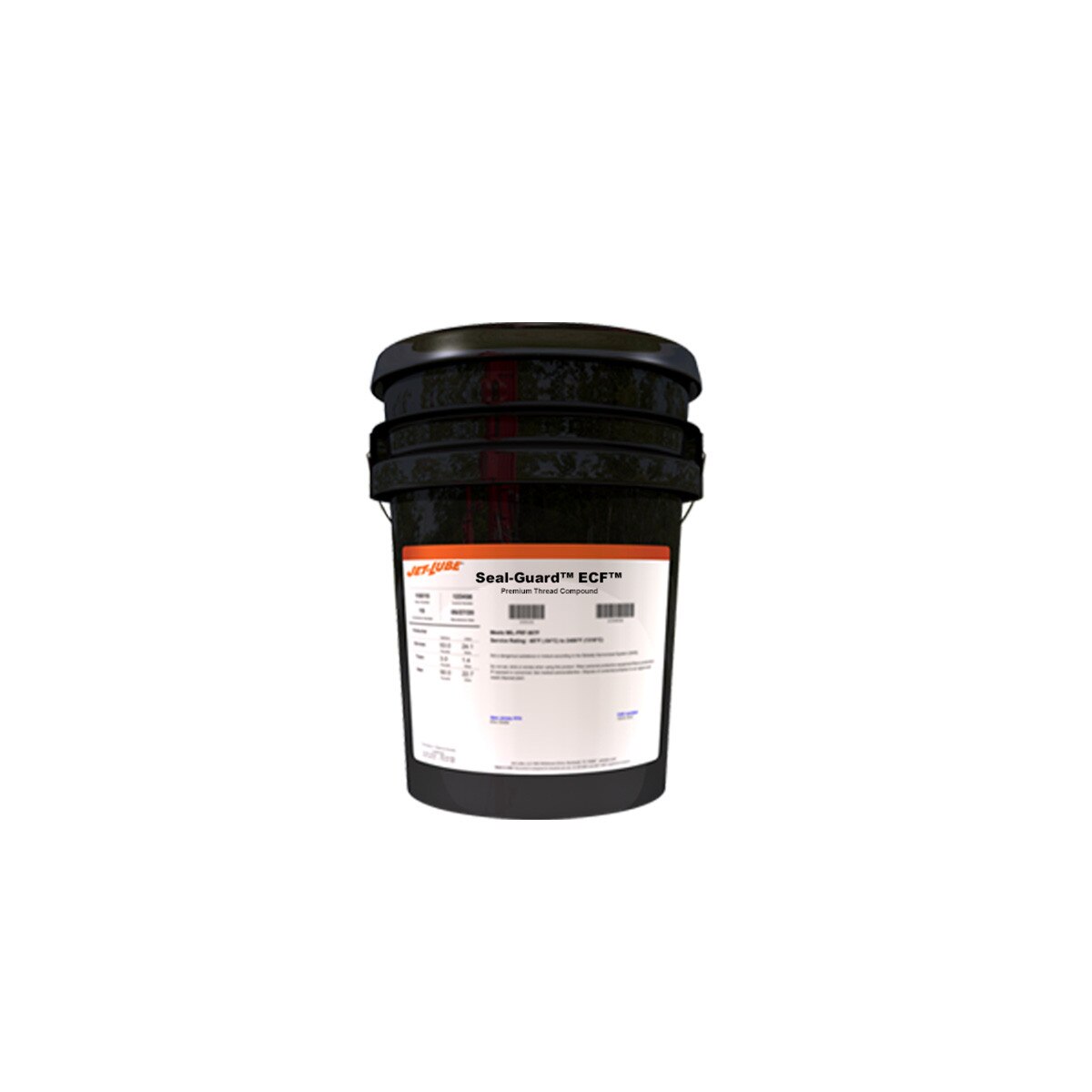

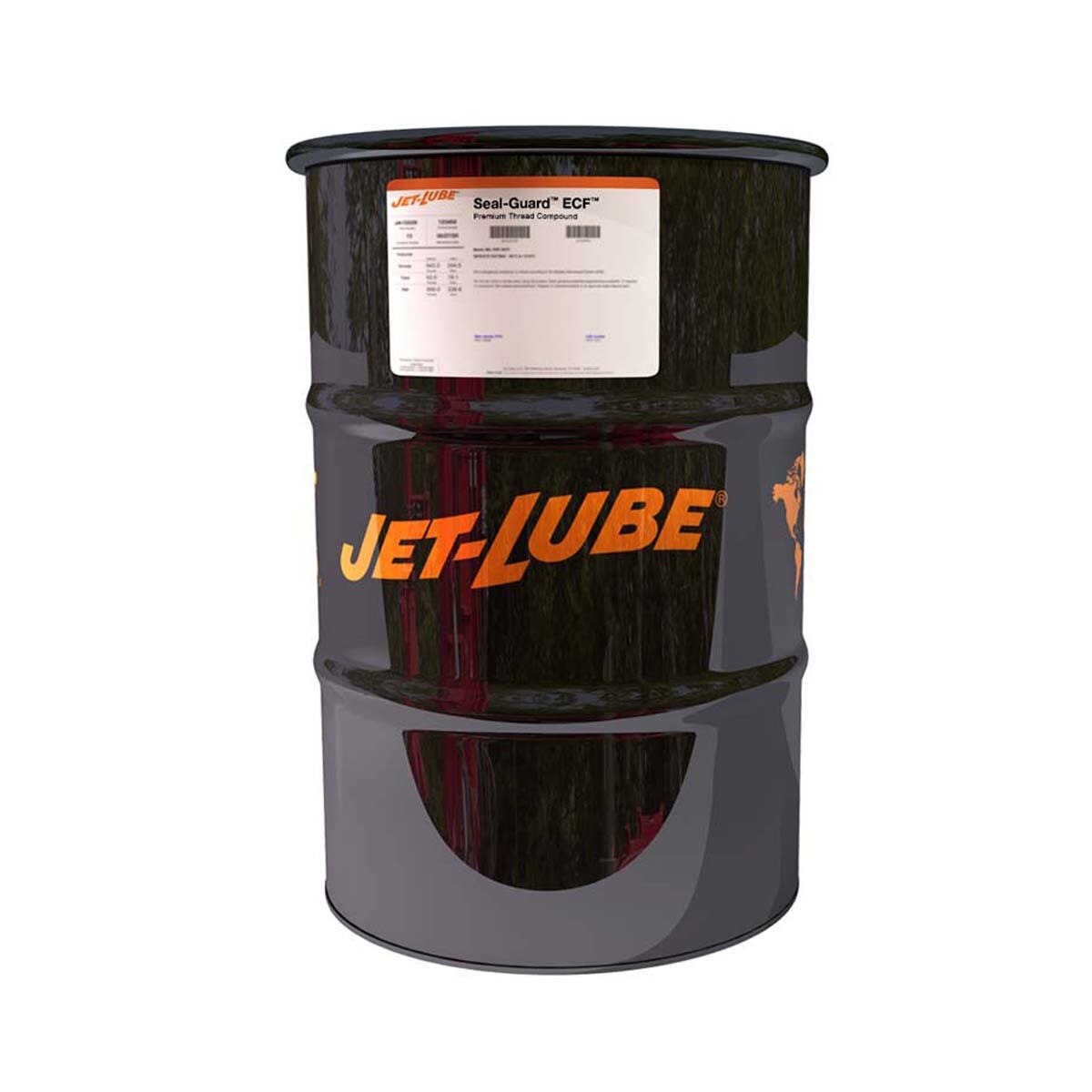

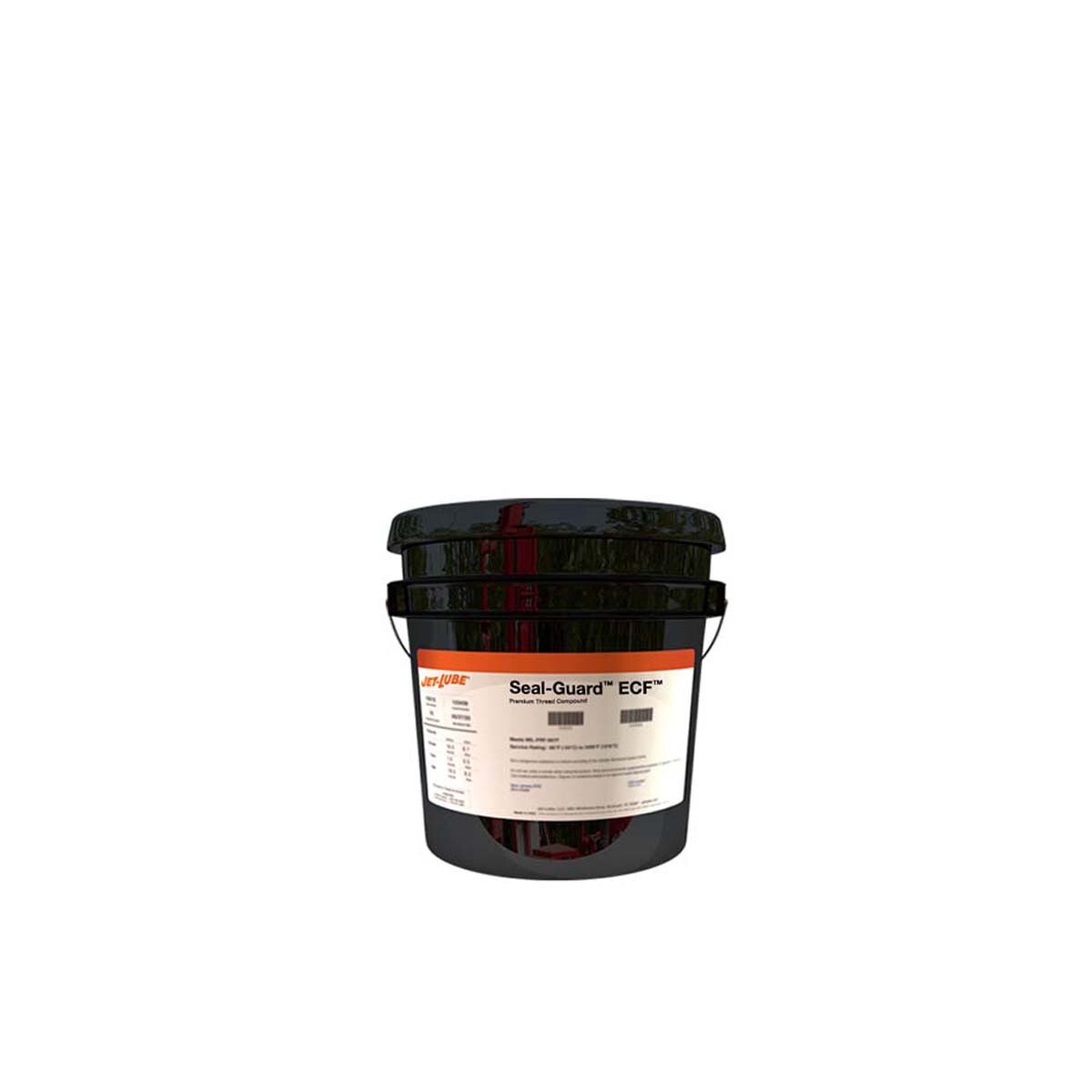

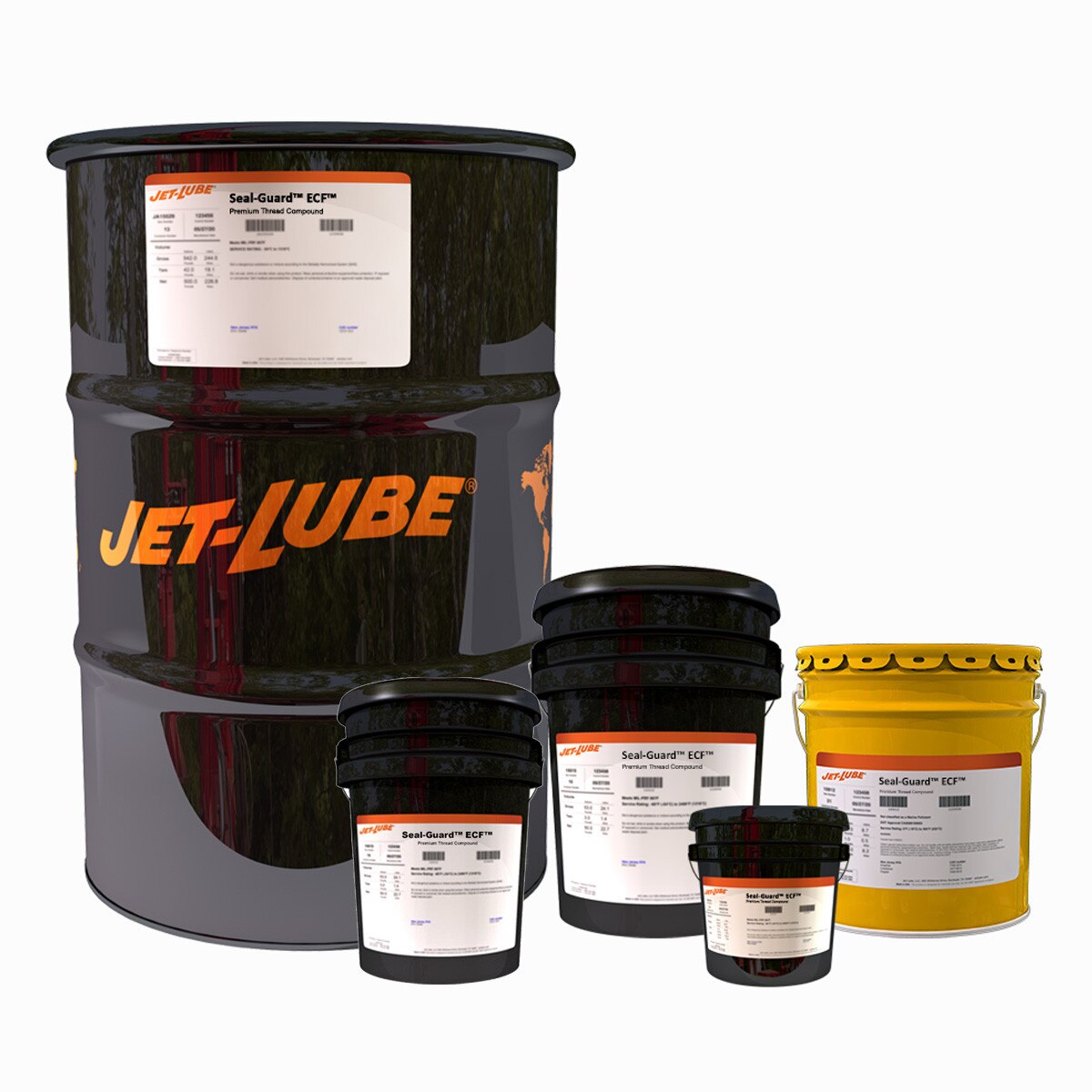

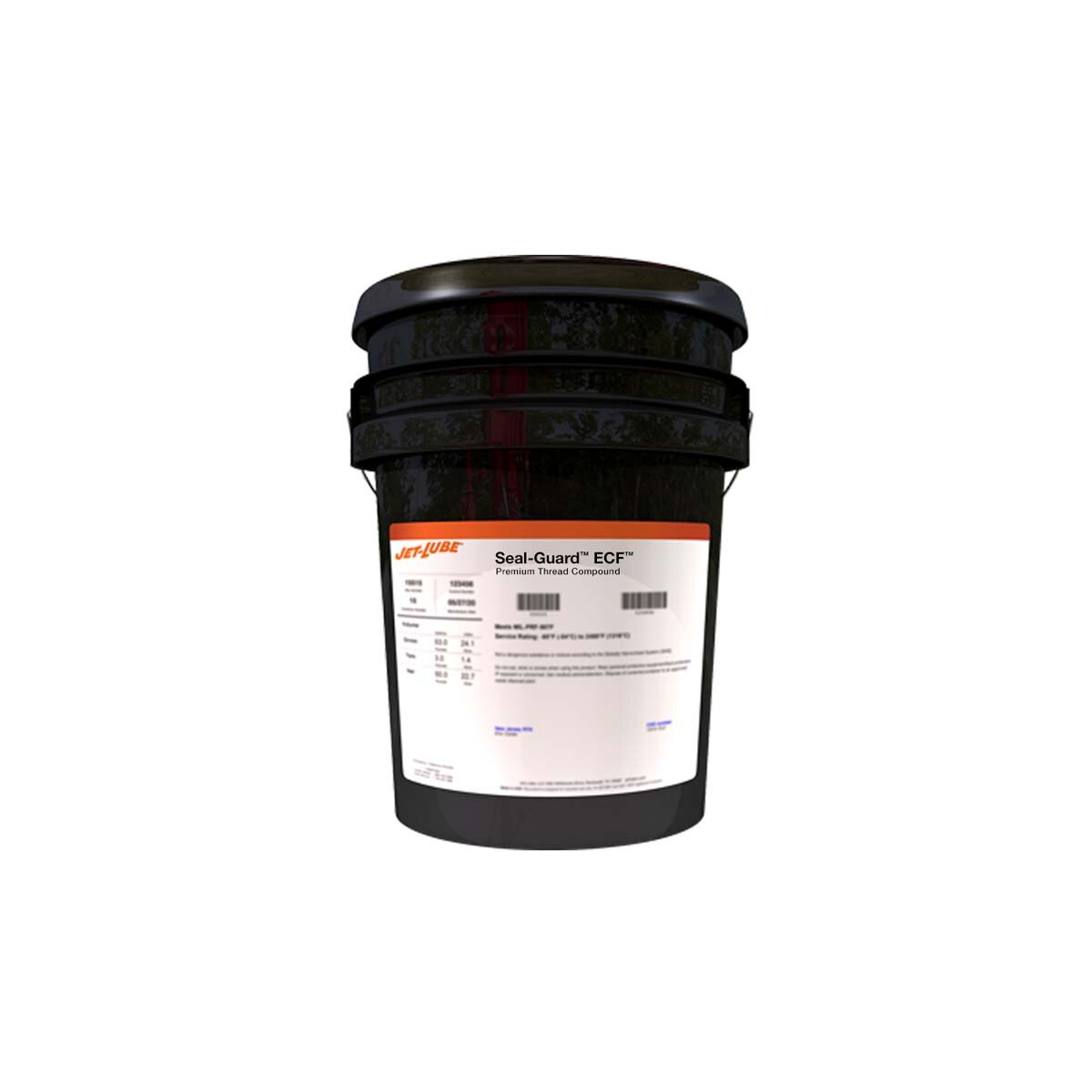

Seal Guard ECF

Premium Thread Compound

Specifically formulated to meet the performance requirements of proprietary, metal-to-metal seal, and high interference connection designs utilizing high performance materials including super chrome and high alloy steels. The smaller particle size distribution may not provide optimum seal performance on 8-round and buttress thread forms. SEAL-GUARD ECF has an advance base containing a carefully selected balance of synthetic and vegetable oils with Jet-Lube extreme base grease thickener technology coupled with innovative solid lubricants. The result is superior lubrication under high loads with galling resistance equivalent to heavy metal based compounds in a totally metal-free formulation. This patented technology provides a high affinity to metal surfaces with a low added solids content. Ideal tubing connections - premium.

Benefits:

• Superior lubrication under high loads with galling resistance
• Patented, cutting-edge technology
• High affinity to metal surfaces
• Film that gives consistent frictional performance
• Biodegradable
• Metal-free
• Sticks to wet or oily threads

Specifications:

• Base Materials: Complex / Synthetic & Vegetable Oils
• Friction / Nut-Factor: Friction Factor: 1.0 (Relative to API MODIFIED)
• Service Rating: -20°F to 450°F / -29°C to 232°C
• Certifications:
  Ospar Commission – Harmonized Offshore Chemical Notification Format (HOCNF) CLASSIFICATION: “Yellow” rating for Norway CLASSIFICATION: “E” for The United Kingdom and The Netherlands Denmark PR#: 2351246
  Conforms with API 5A3 for use with casing, tubing, and line pipe.
