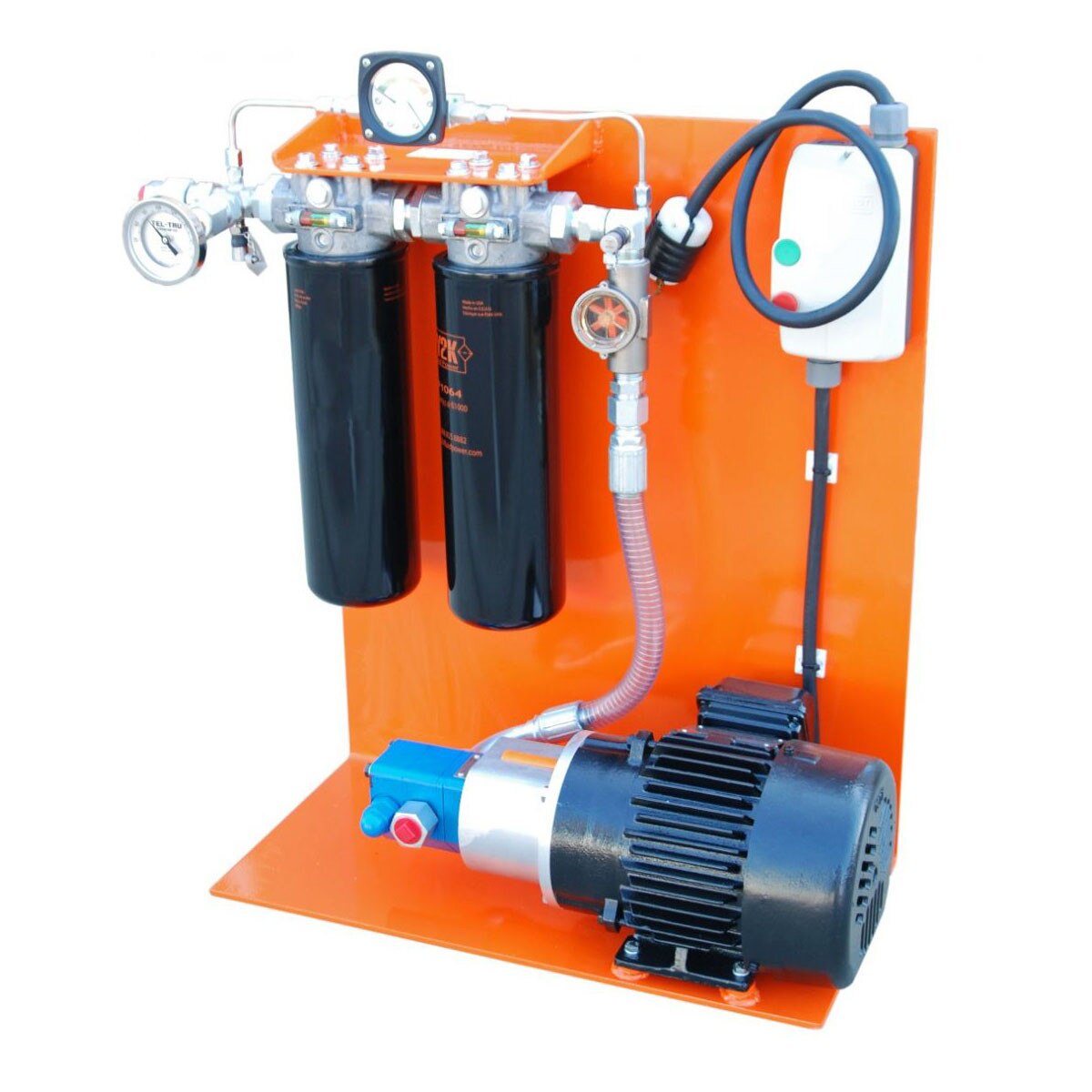

ForFluids Custom Panel Unit

(0)No Reviews yet
SKU: FFPUDC

Details

When you need to install a permanent, continuous duty solution for your offline filtration, the PU-D Panel Unit is the perfect solution. Available in a variety of sizes, it will suit any space requirement you may have. These filtration systems have all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Panel Unit products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated systems
  • Collecting oil samples for analysis
  • Dispensing new oil
  • Permanent installations

Standard Features:

  • Frame: Carbon Steel Panel
  • Paint: Multiple color options available
  • Motor: 1 HP, 115vac, 60Hz or Pneumatic
  • Filter Heads: Medium pressure, cast aluminum heads
  • Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5, 10 GPM
  • Cord Reel: 40' Retractable electric cord reel

Replacement Elements

FF1066: 4 Micron BETA 2000 filter element
FF1065: 7 Micron BETA 2000 filter element
FF1063: 10 Micron BETA 1000 filter element
FF1064: 25 Micrron BETA 2000 filter element
FF1048WR: Water Removal Element

Weight: Approx 75-80 LBS

Dimensions: L 24" x W 12" x H 29"
