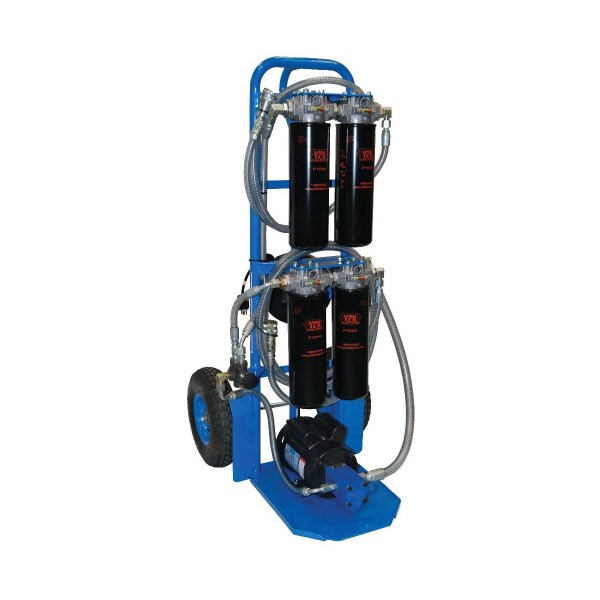

ForFluids Custom Tandem Filter Cart
Details
The ForFluids Custom Tandem Filter Cart allows you to pick and choose complimentary features in addition to the standard features listed below.
Add On Options:
- High oil temperature alarm
- Manual bypass
- Digital flow meter/totalizer
- Color Coded Delta P Gauge
- Visual Flow Meter
- Lift Lugs
- Magnetic pre-filter w cleanable rod
- Heat exchanger (air/oil or water/oil)
- Push button sample ports
- Standard mini-mess sample ports
- Inline particle counter
- Y-Strainer (149 mesh)
- On/Off timer control
- Water content monitor
- Yellow light filter indicator
- Additional options available per customization
Standard Features:
- Frame: Carbon Steel with drip pan; flat free tires
- Paint: Multiple color options available
- Motor: 1 HP, 115vac, 60Hz or Pneumatic
- Filter Heads: Medium pressure, cast aluminum heads
- Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5, 10 GPM
- Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
- Cord Reel: 40' Retractable electric cord reel
Replacement Elements
- FF1066: 4 Micron BETA 2000 filter element
- FF1065: 7 Micron BETA 2000 filter element
- FF1063: 10 Micron BETA 1000 filter element
- FF1064: 25 Micrron BETA 2000 filter element
- FF1048WR: Water Removal Element
Weight: Approx 200 LBS
Dimensions: Approx L 23" x W 22" x H 52"
