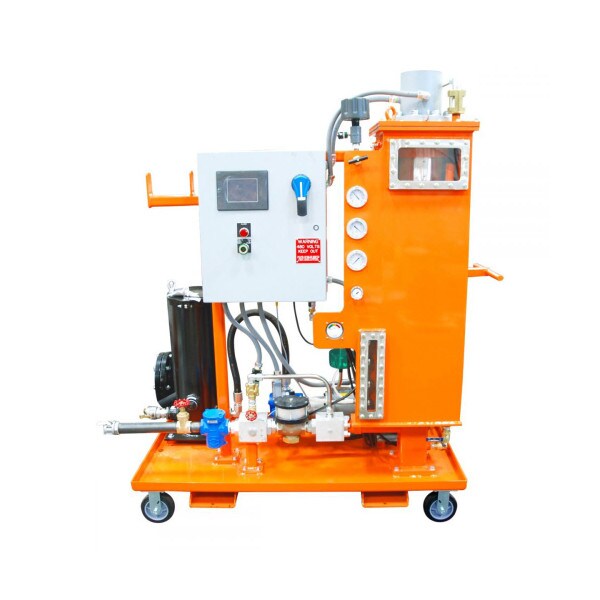

Vacuum Dehydration System - 15 GPM
Details
The purpose of the Vacuum Dehydration Systems are to serve as an oil treatment system. By removing water (dissolved, emulsified, and free), gasses, and solid contaminants the oil can return to its original conditions, and can be reused in lubricating systems. Having clean, dry oil will allow hydraulic and lubricating systems to perform more efficiently and can result in significant financial gains. The need to purchase new lubricating oils can be reduced and in some cases eliminated completely.
How it Works:
To begin the oil is brought into the chamber and passed over the heater and heated. It then is dispersed over the Pall Rings, located inside the tower, and then exposed to a vacuum, usually between 22-25"Hg.
After the oil has been degassed and dehydrated it is pumped out of the bottom of the tower via the hydraulic pump into the filter to remove any contaminants before it enters the reservoir or system again.
In order to optimize this process the purifier is partially automated with a PLC and series of electrically controlled switchers. Data, diagnostics, alerts, and many help screens can be accessed on the control panel touch screen display.
Typical Applications:
- Filtering pulp and paper lube systems
- Filtering steam turbine lube systems
- Filtering hydraulic reservoirs
- Filtering rolling mill lube tanks
Typical Industries:
- Power Generation
- Mining
- Pulp and Paper
- Steel
- Automotive Manufacturing
Removes:
- 100% Free Water
- 100% Emulsified Water
- Up to 90% of Dissolved Water from Industrial Oils
- 100% of Free Gases
- Up to 90% of Dissolved Gases
- Remove Free and Dissolved down to 20PPM
Technical Specifications:
- Flow Rates: 15GPM - other flow rates available
- Vacuum Pump Flow Rate: 13CFM
- Heather Capacity: 3 KW @ 15wsi (5GPM) / 18 KW @ 15wsi (15GPM)
- Motors: Electric, 480 vac, 3 Phase - Other voltages available including explosion proof.
- Plumping: 1 1/2" FNPT Inlet / 1 1/2" FNPT Outlet
- Dimensions and weights vary per unit
Many of these systems are built to order and are customized to your application. Give us a call at 1-630-922-5020 or send us an email for more information.
