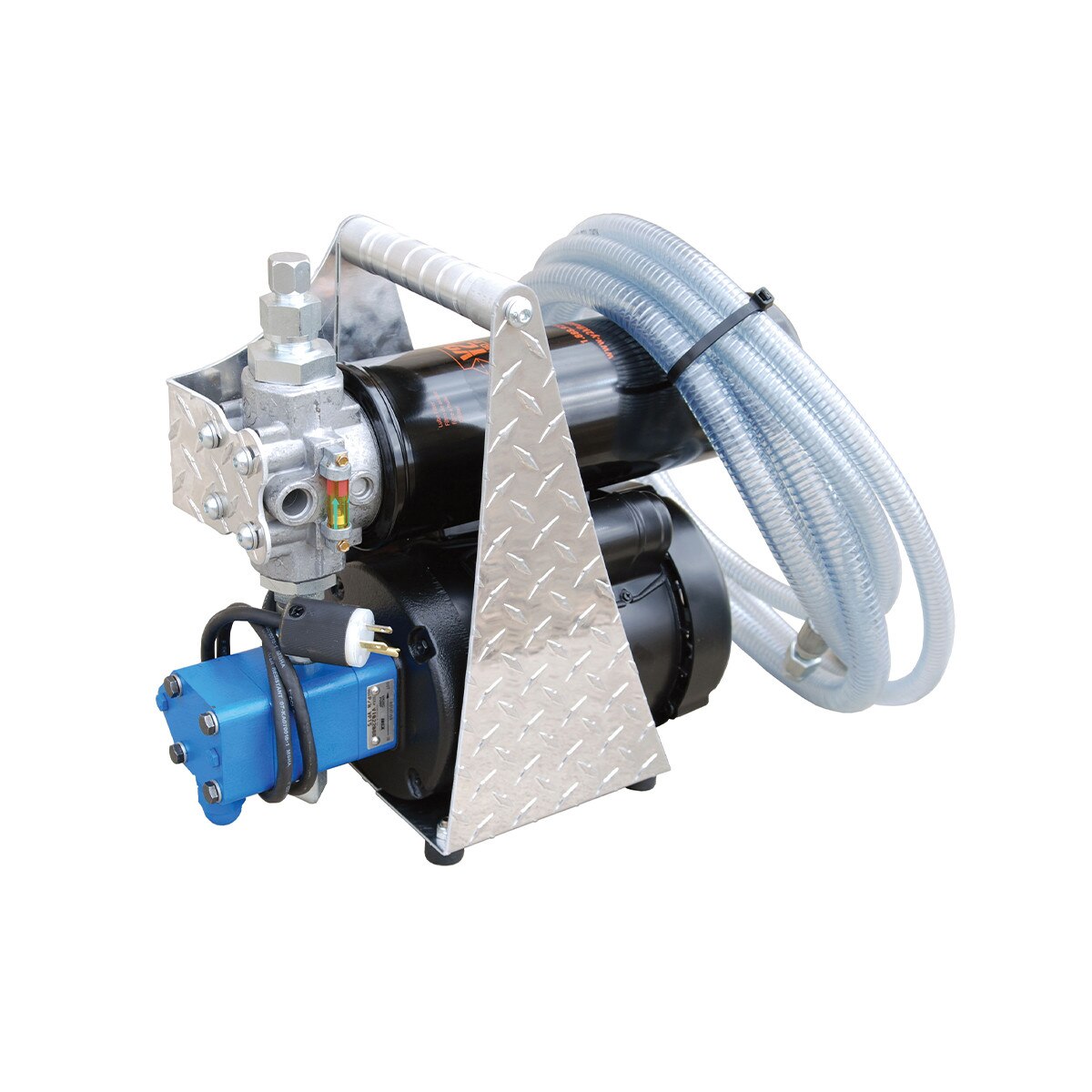

ForFluids Custom Filter Pak

Perfect for situations with minimal storage space, the CUSTOM ForFluids FilterPak combines style and convenience in a compact design that allows the operator to carry it just about anywhere. This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All FilterPak products are 100% customizable upon request.

Typical Applications:
• Filtering contaminated systems
• Flushing new or repaired systems
• Pre-filtering new oil
• Transferring oil
• Topping off reservoirs
• Dispensing new oil

Standard Features:
• Frame: Heavy duty, diamond plated aluminum
• Motor: 1/2 HP or 1 HP, 115vac, 60Hz or Pneumatic
• Filter Heads: Medium pressure, cast aluminum heads
• Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5, 10 GPM
• Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
• Cord Reel: 4' Retractable electric cord reel

Replacement Elements:
FF1066: 4 Micron BETA 2000 filter element
FF1065: 7 Micron BETA 2000 filter element
FF1063: 10 Micron BETA 1000 filter element
FF1064: 25 Micrron BETA 2000 filter element
FF1048WR: Water Removal Element
Weight: Approx 50 LBS
Dimensions: L 8" x W 16" x H 16"
