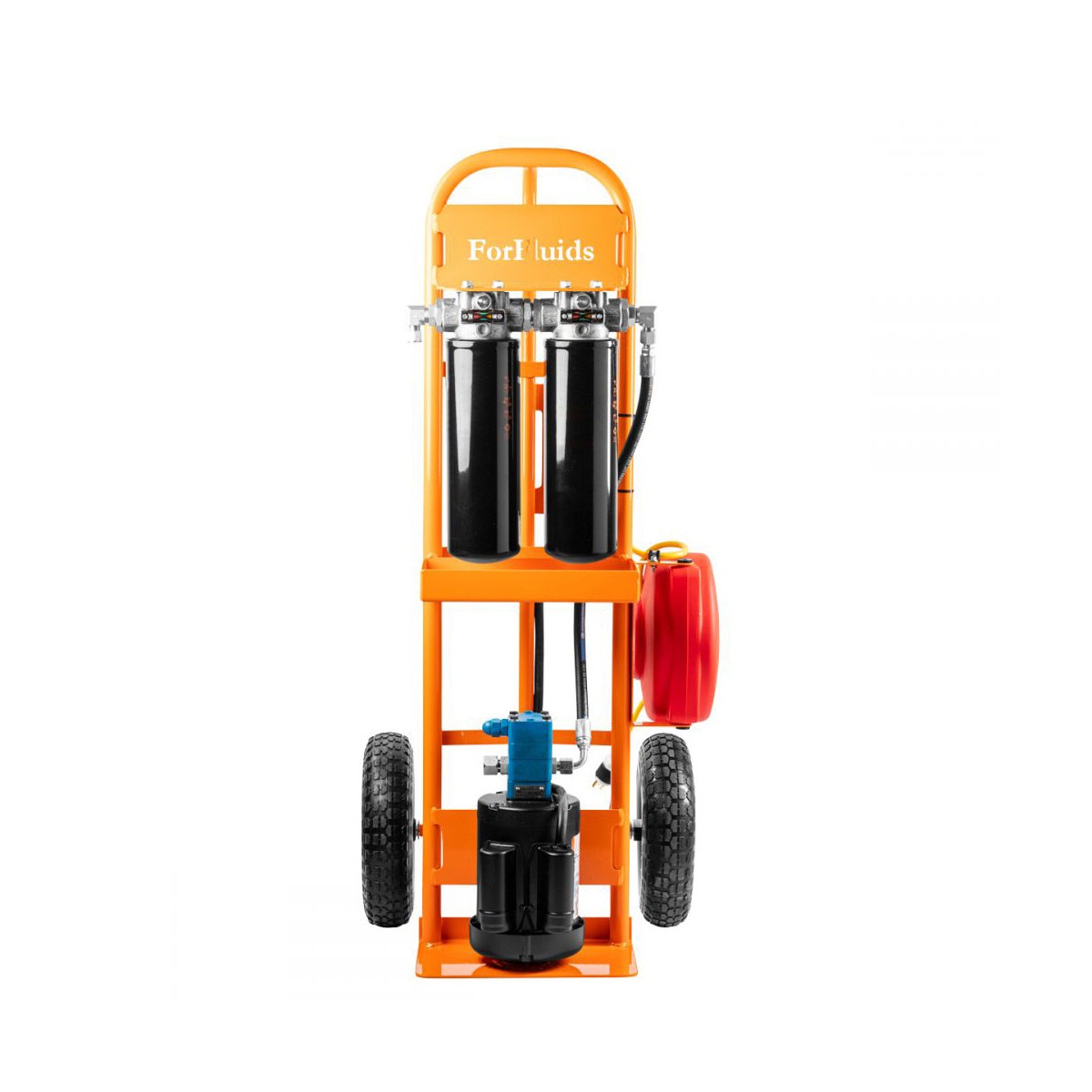

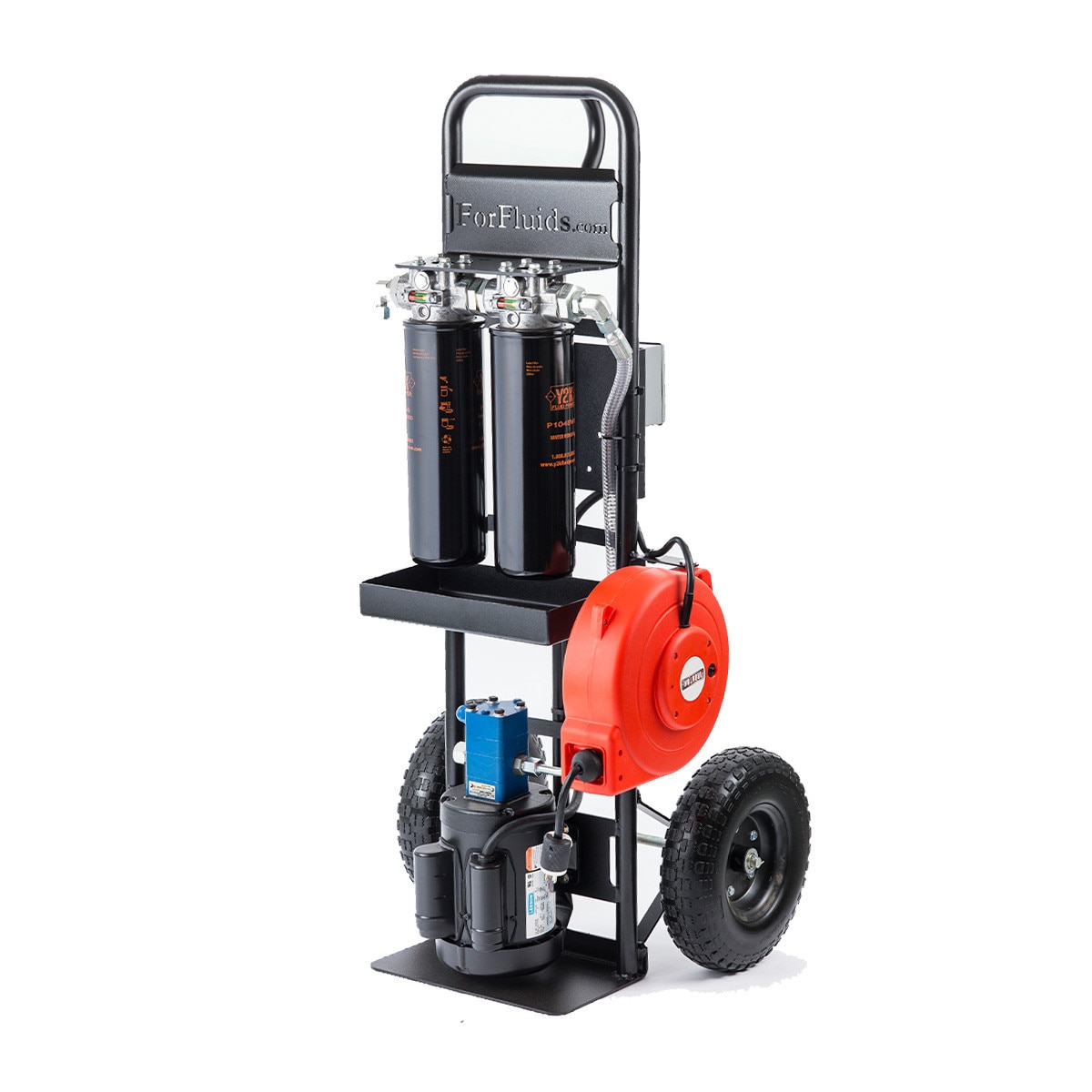

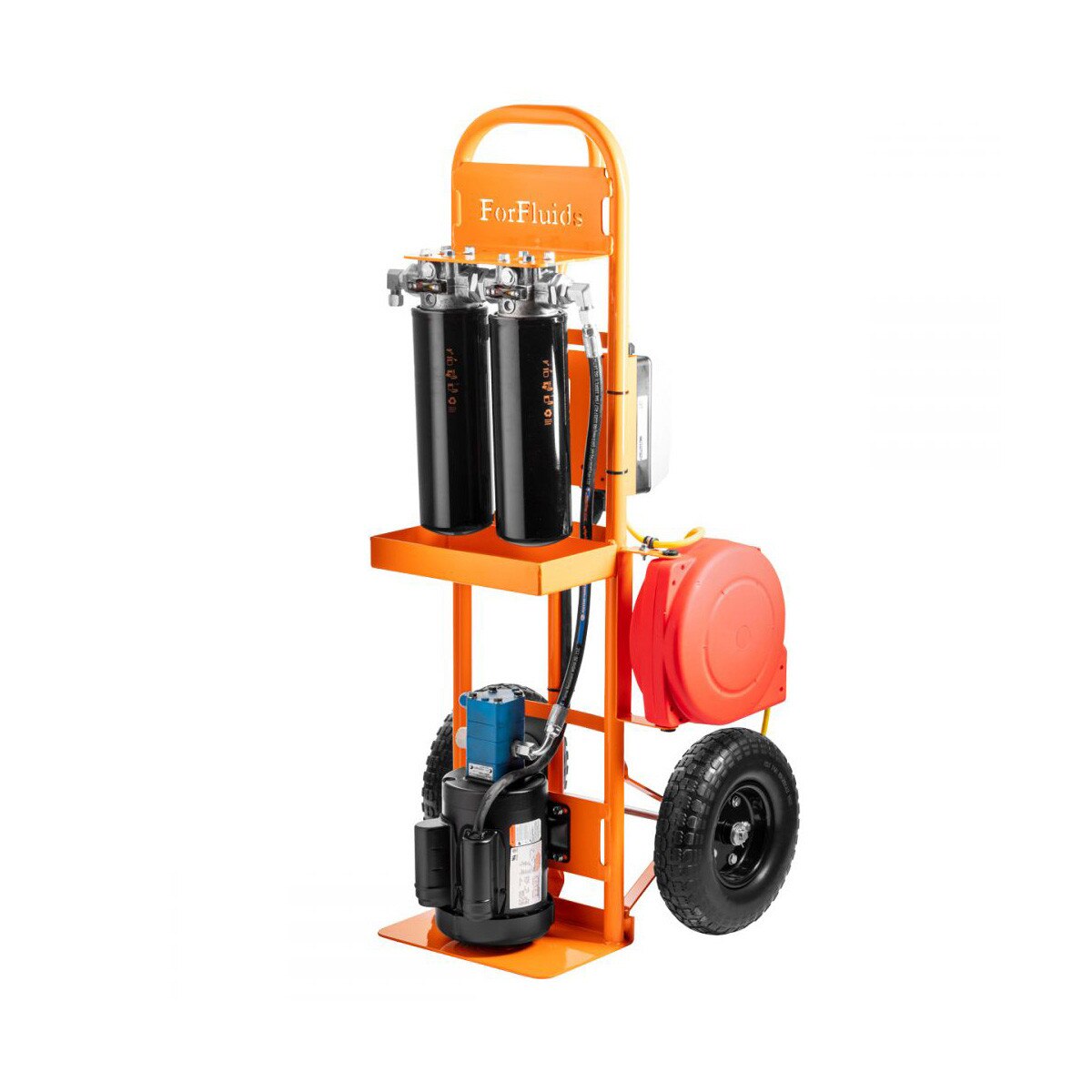

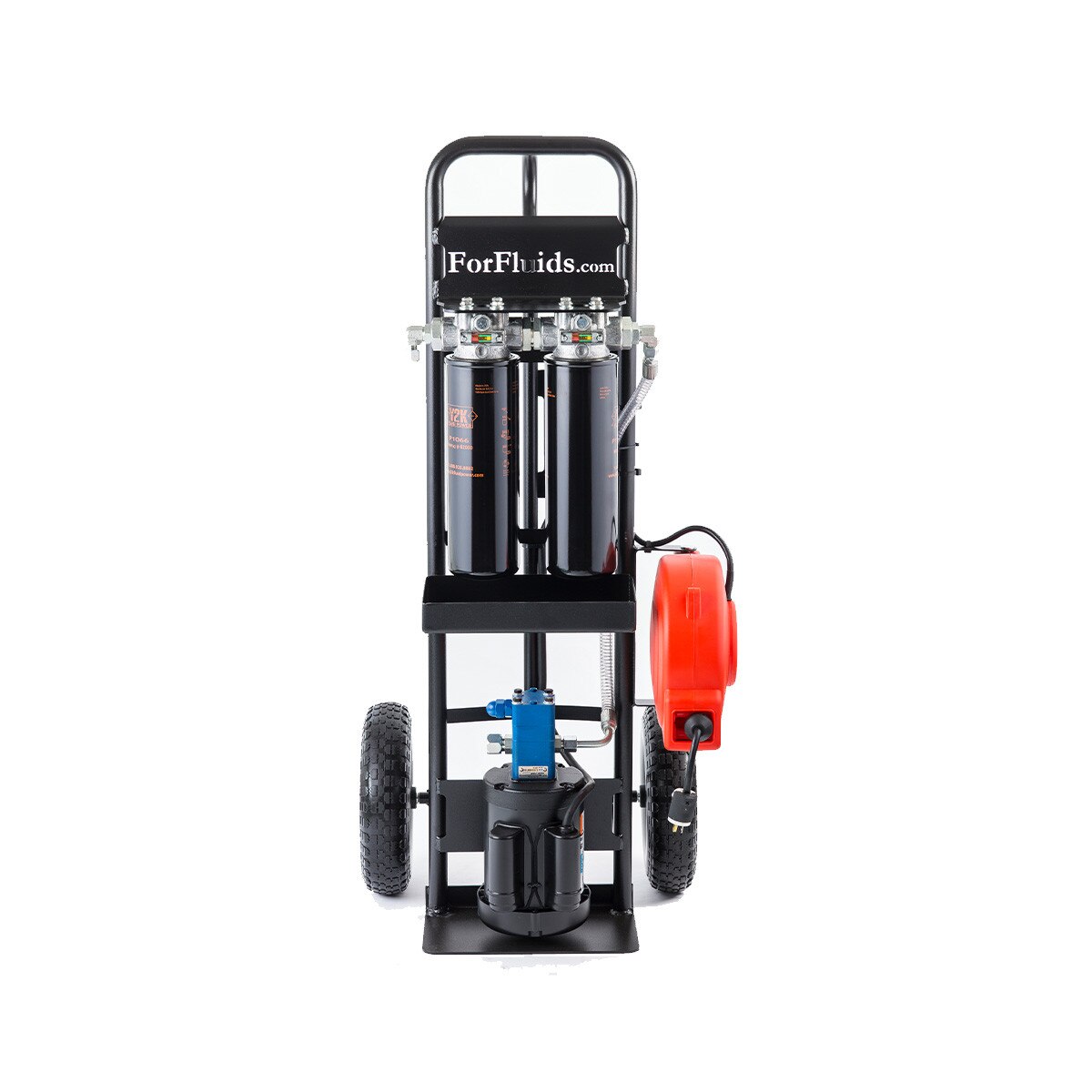

ForFluids Omega Filter Cart 10 GPM
Details
Details
The ForFluids 10 GPM Omega Filter Cart allows you to pick and choose complimentary features in addition to the standard features listed below.
Standard Features:
- Motor: 1 HP, 115vac, 60Hz or 1.5 HP Air Vane
- Pump/Relief: Heavy Duty Cast Iron @ 150PSI

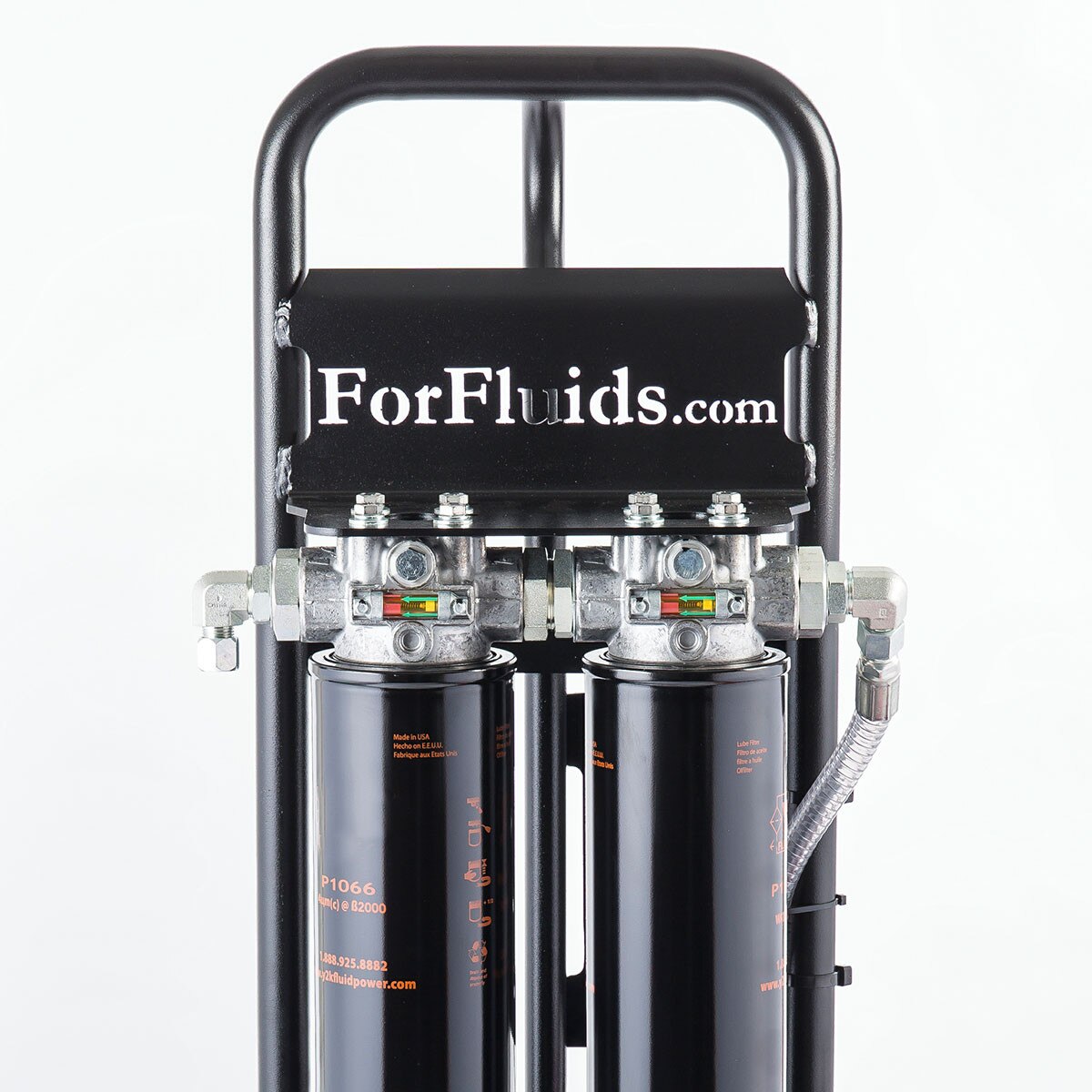

- Filter Heads: Aluminum - Plumber in Series 50PSI Bypass w/Slide Bar Indicators
- Connections: ISO B QD's
- Hose Set: 1" Suction & 3/4" Return 7'
- Cord Reel: 40' 15Amp Retractable Reel
- Switch: Nema 4/4x, UL 508 On/Off Switch
- Color: Black (standard), Other Colors Available
Replacement Elements:
- FF1066: 4 Micron BETA 2000 filter element
- FF1065: 7 Micron BETA 2000 filter element
- FF1063: 10 Micron BETA 1000 filter element
- FF1064: 25 Micron BETA 2000 filter element
- FF1048WR: Water Removal Element
Add On Options:
- High oil temperature alarm
- Manual bypass
- Digital flow meter/totalizer
- Color Coded Delta P Gauge
- Visual Flow Meter
- Lift Lugs
- Magnetic pre-filter w cleanable rod
- Heat exchanger (air/oil or water/oil)
- Push button sample ports
- Standard mini-mess sample ports
- Inline particle counter
- Y-Strainer (149 mesh)
- On/Off timer control
- Water content monitor
- Yellow light filter indicator
- Additional options available per customization
Weight: Approx. 180 LBS
Dimensions: L 23" x W 22" x H 52"
