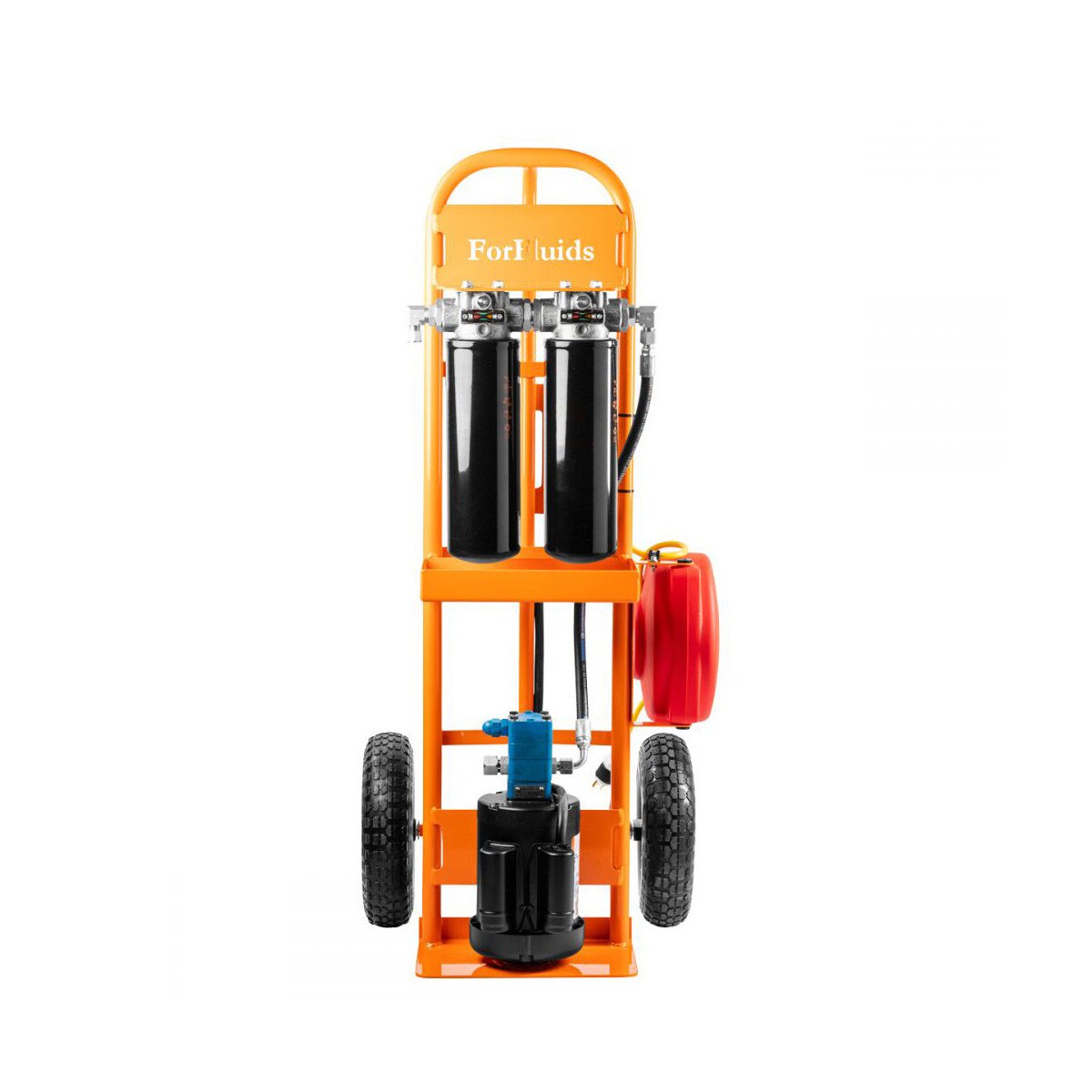

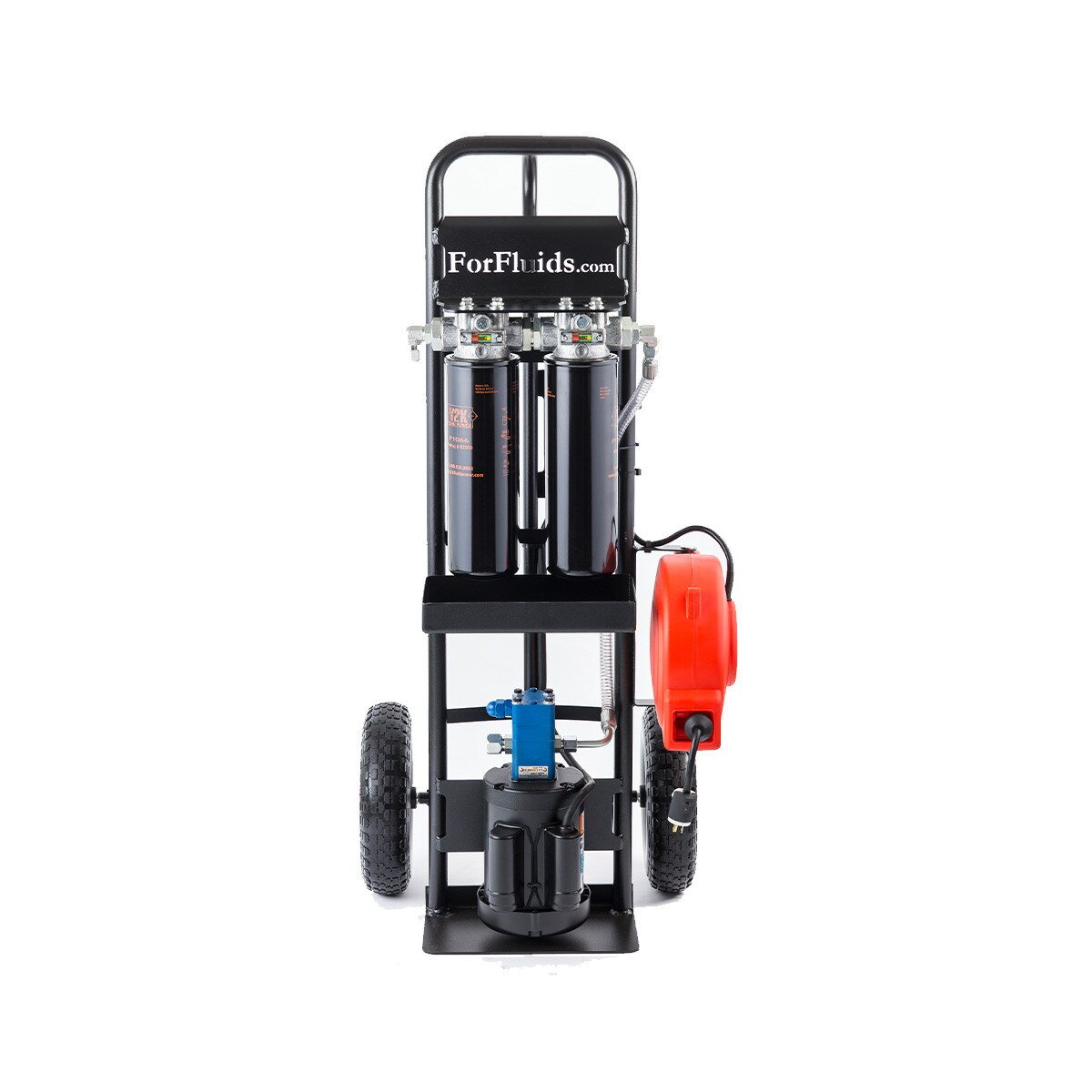

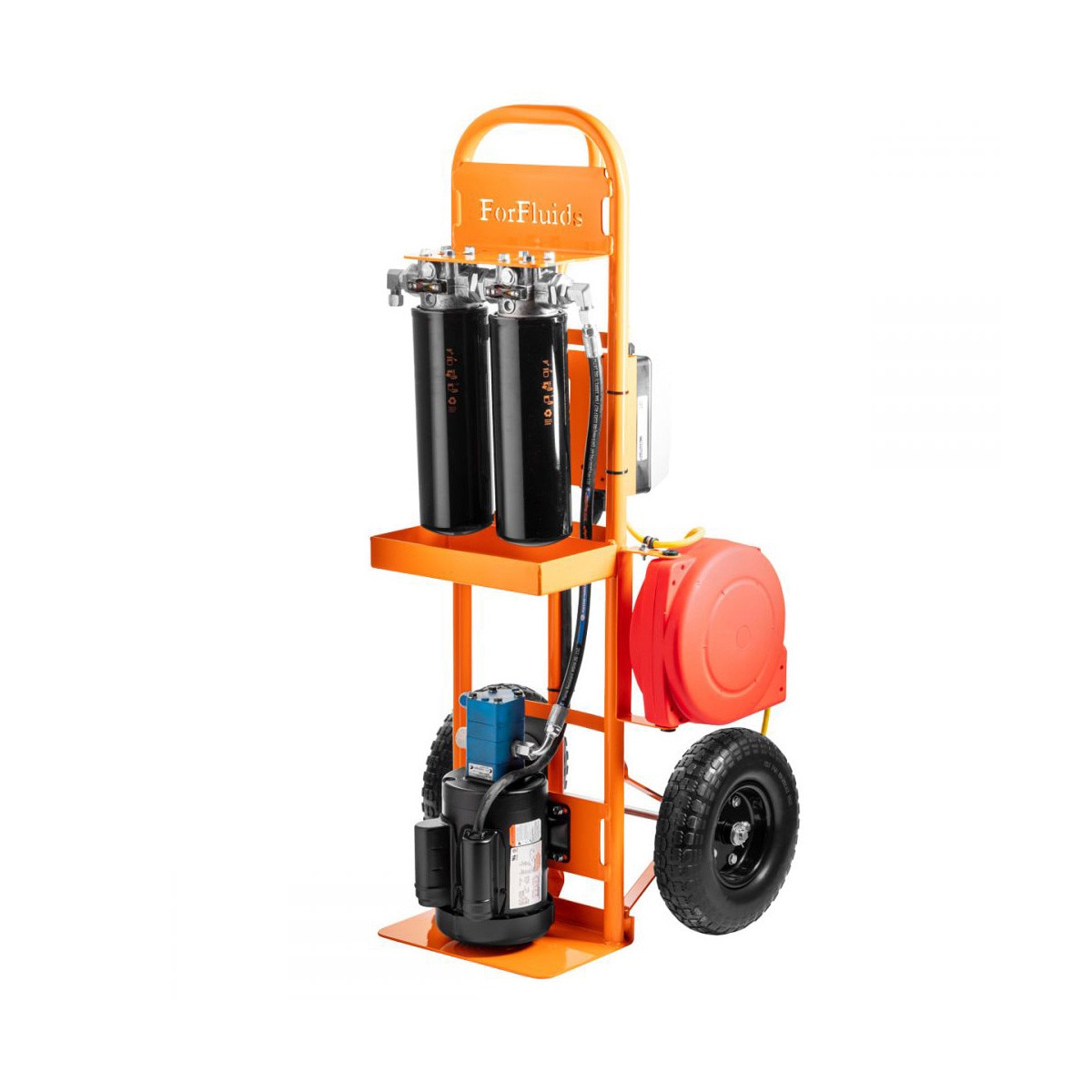

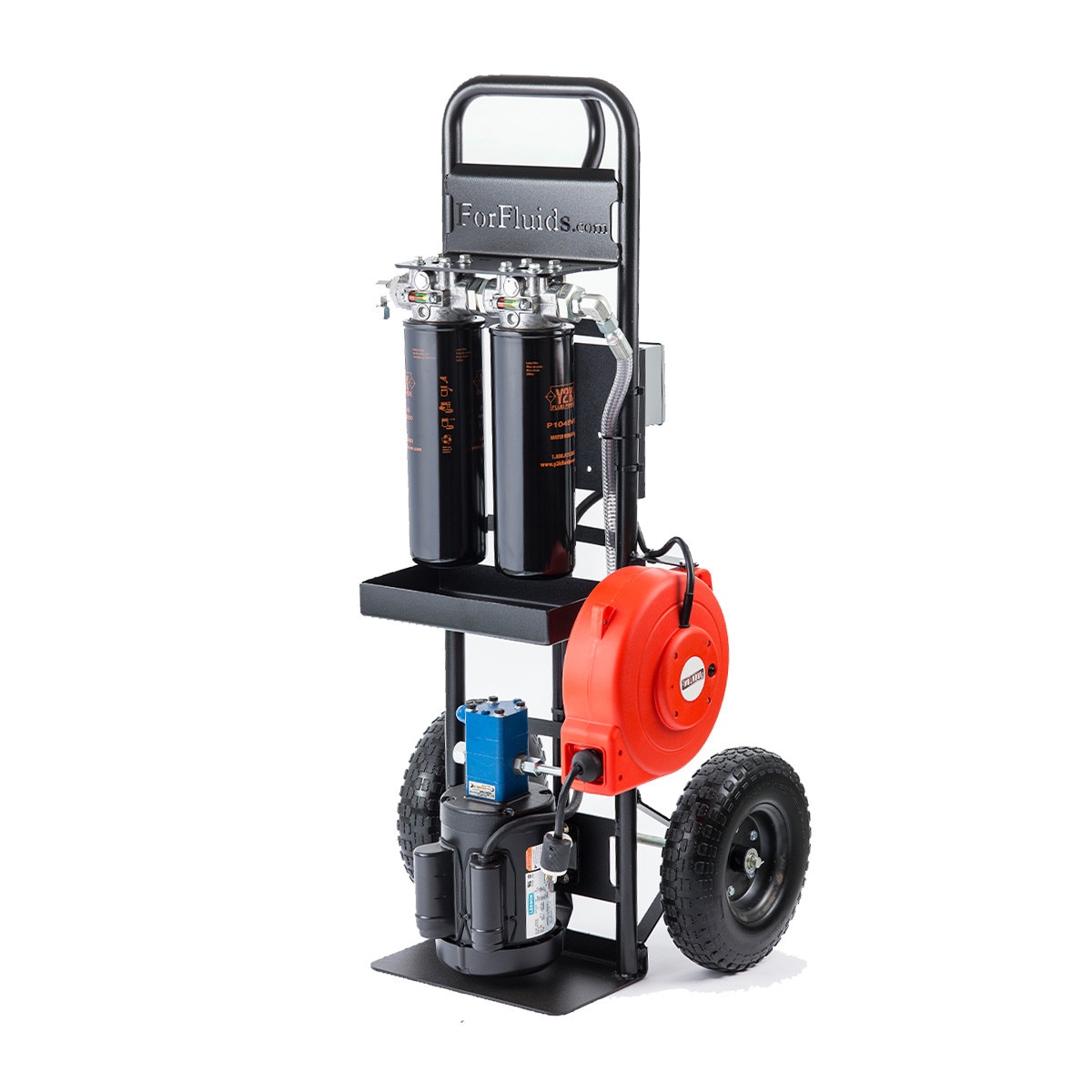

ForFluids Filter Cart 5 GPM
Details
The ForFluids Custom Filter Cart allows you to pick and choose complimentary features in addition to the standard features listed below.
Add On Options:
- High oil temperature alarm
- Manual bypass
- Digital flow meter/totalizer
- Color Coded Delta P Gauge
- Visual Flow Meter
- Lift Lugs
- Magnetic pre-filter w cleanable rod
- Heat exchanger (air/oil or water/oil)
- Push button sample ports
- Standard mini-mess sample ports
- Inline particle counter
- Y-Strainer (149 mesh)
- On/Off timer control
- Water content monitor
- Yellow light filter indicator
- Additional options available per customization
Standard Features:
- Frame: Carbon Steel with drip pan; flat free tires
- Paint: Multiple color options available
- Motor: 1 HP, 115vac, 60Hz or Pneumatic

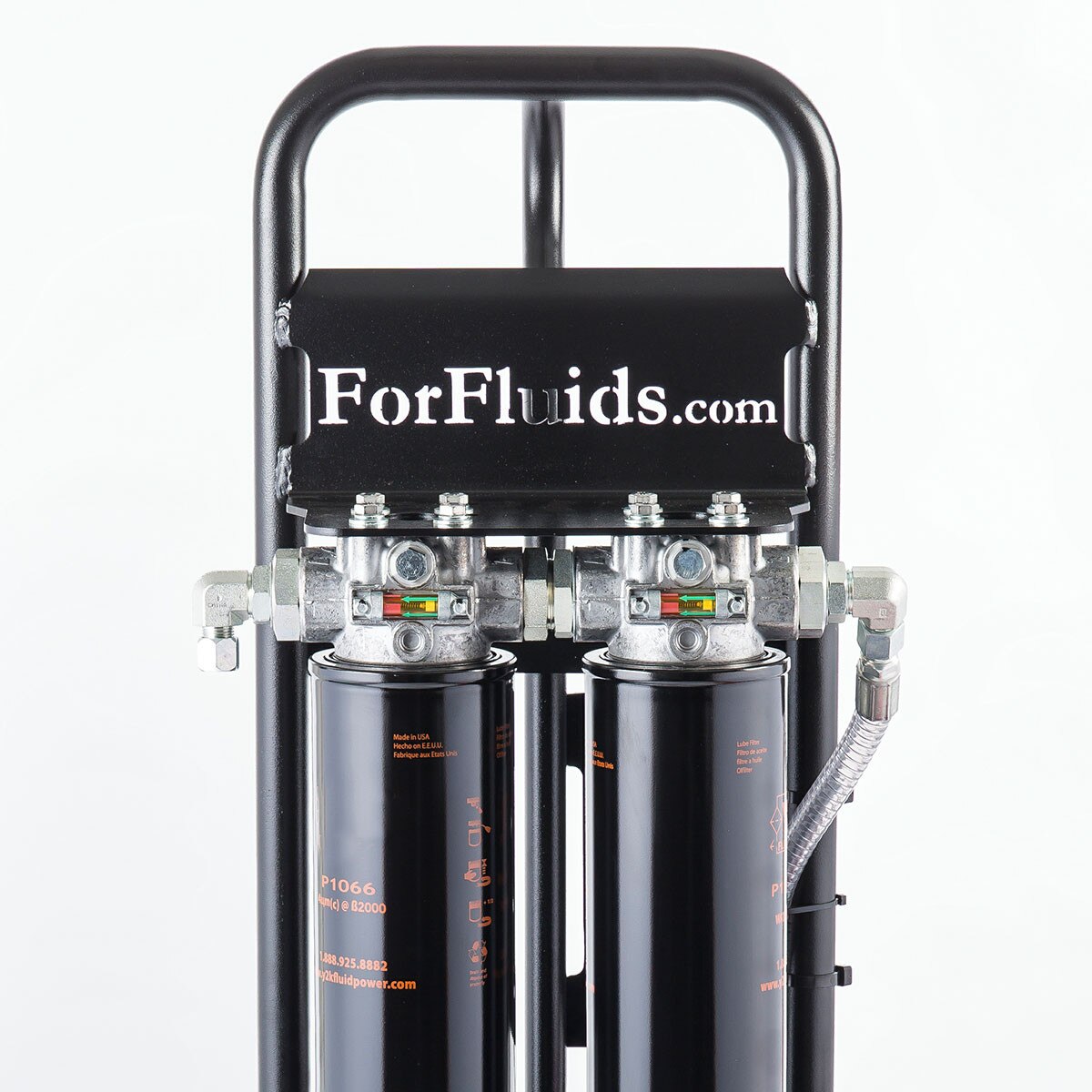

- Filter Heads: Medium pressure, cast aluminum heads
- 5 GPM Pump: Heavy duty, cast steel gear pump.
- Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
- Cord Reel: 40' Retractable electric cord reel
Replacement Elements:
- FF1066: 4 Micron BETA 2000 filter element
- FF1065: 7 Micron BETA 2000 filter element
- FF1063: 10 Micron BETA 1000 filter element
- FF1064: 25 Micrron BETA 2000 filter element
- FF1048WR: Water Removal Element
Weight: Approx 125 LBS
Dimensions: L 23" x W 22" x H 52"
Ships via truck freight
