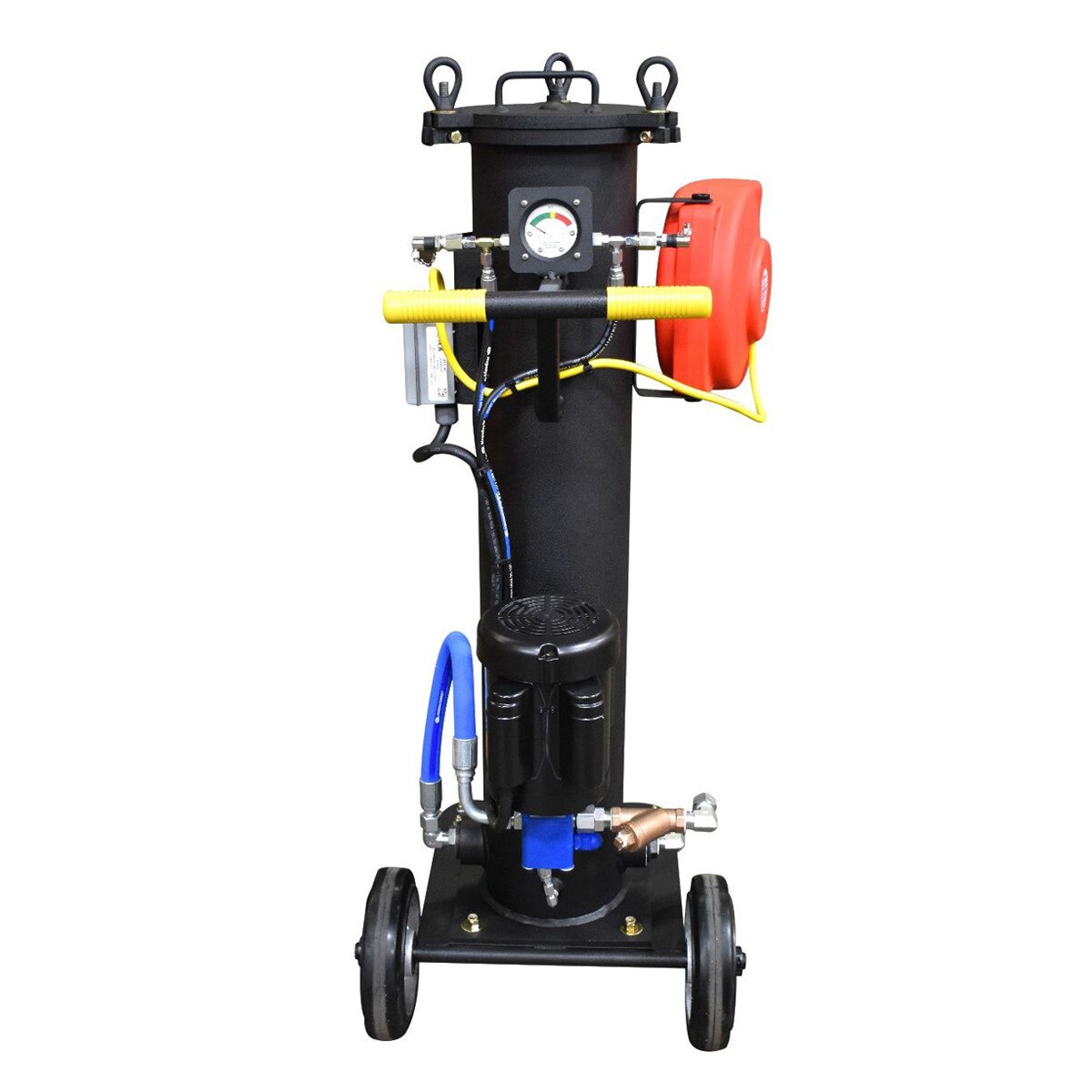

ForFluids 5 GPM High Viscosity Filter Stand

(0)No Reviews yet

Details

The High Viscosity Filter Stand is an excellent choice for "offline" filtration of hydraulic and gear lubricants. Robust and high capacity filters allow for filtering of viscosities up to ISO 680 (7500 ssu) at 100°F with ambient termperature ranges -15°F to 250°F. This system is completely customizable to fit all your needs.

Typical Applications:
• Filtering Contaminated Systems
• High Viscosity Filter or Transfer
• Pre-filtering New Oil
• Permanent Filtration: tanks, reservoirs, or sumps
• Dispensing New Oils
• Large Volumes of Fluids

Standard Features:
• Frame: Carbon steel housing; powder coated frame; caster wheels with brakes
• Paint: Multiple color options available
• Motor: 1HP, 115vac, 60Hz or Pneumatic - other voltage options available
• Filter: 36" Synthetic micro-glass; various micron level filters available
• Pump: Heavy duty, cast steel gear pump. 5 GPM - other pump flows available
• Connections: Hydraulic high pressure available w/ various quick connect options
• Power Switch: Premium on/off reset motor starter or sealed on/off switch
• Cord Reel: 40' Retractable electric cord reel - 110 VAC options only - various corded lengths available
• Filter Indicators: Standard color-coded differential pressure indicator
• Pump Relief: Opens at 150psi - standard pump

Options:
Available with or without Wheel Kit for stationary or mobile applications

Many of these systems are built to order and are customized to your application. Give us a call at 1-630-922-5020 or send us an email for more information.
