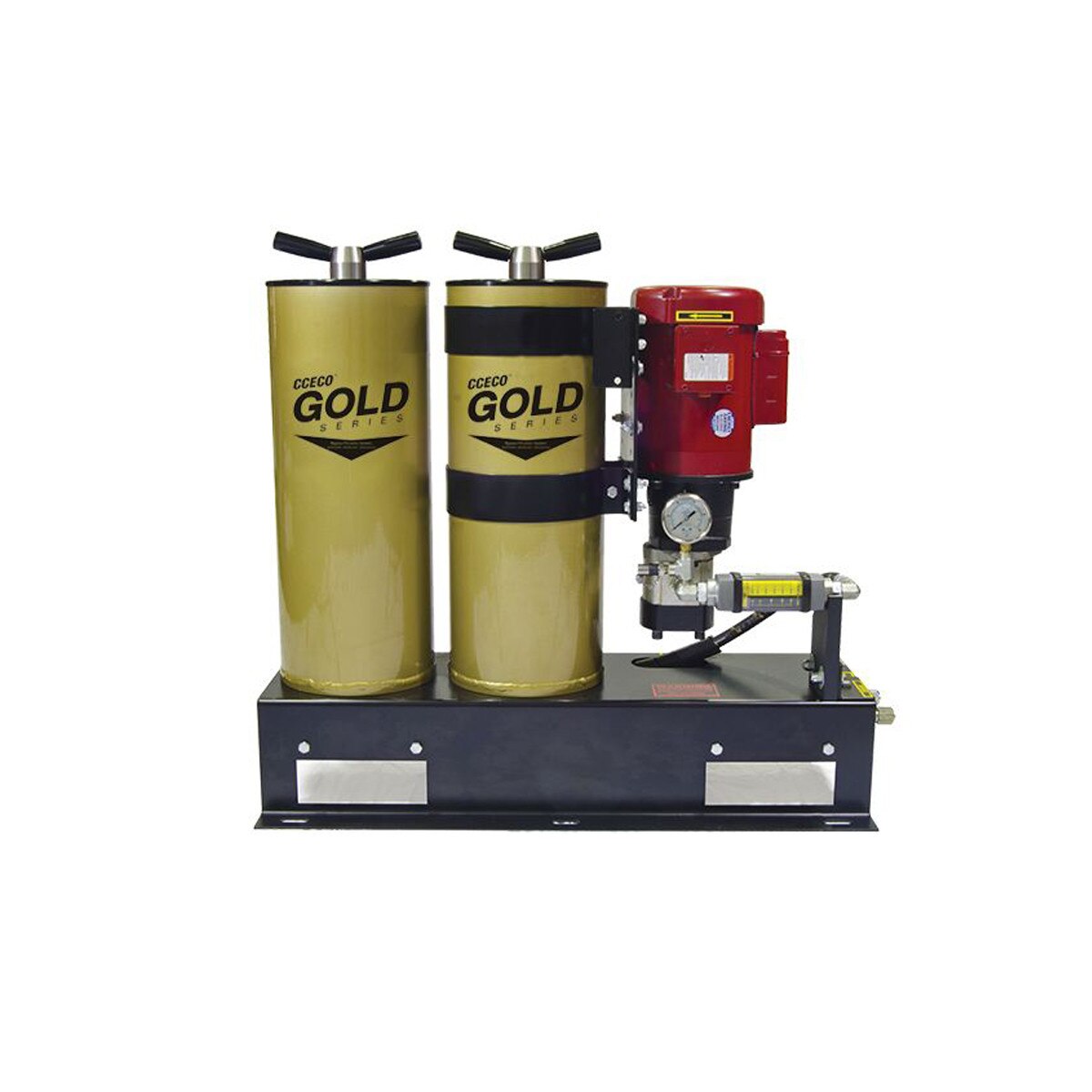

ForFluids Gold Electric Motor Series - 200, 2 Large Housing - 5 GPM
Details
Our dedicated by-pass filtration systems far exceed industry standards, filtering down to 1 micron will maintain cleanliness levels several grades cleaner than brand new oil, dramatically extending the life of lubricated components and oil. Increased filtration accuracy prevents wear in hydraulic, gear, and diesel engine oil systems. Extending equipment life saves you time, money, and resources. Maximum containment holding capacity and water removal with depth filtration increases reliability and productivity for your most critical assets. The GEM series offers full-time or scheduled, timed operation for 24/7 filtration. Heavy duty stationary filtration units securely mount to equipment or storage tanks. A variety of elements, plus a heater option, allows for filtration viscosities up to 1000 cSt.
Typical Applications:
- Mining Operations
- Power Plants
- Paper Mills
- Metal Stamping
- Injection Molding
- Marine Vessels
- Government Satellite Operations
- Hay Compression
- Bulk Storage
- Lube Rooms
Features and Benefits:
- Filters down to 1 micron, several grades cleaner than new oil
- Moisture removal down to 100ppm
- Lower ISO codes
- Heater option allows for viscosities up to 1000 cSt
- Laser Particle Counter option so you can always know your oil condition in real time
- Sample port for easily drawn oil samples
- Depth-style filtration for maximum dirt holding capacity and efficiency
- Reduces contamination failure in hydraulic systems, transmission fluids, gear boxes, stationary engines, lube rooms, machining oils, turbine oils, and engine oils.
Standard Technical Specifications:
- Motor Rating: 1 - 1.5 HP, 1,725 RPM
- Inlet Diameter: #12 JIC Male
- Outlet Diameter: #8 JIC Male
- Voltage: Single Phase / 3 Phase, Wash Down 110/220, 360/480
- Relief Valve Setting: 60 PSI
- Viscosity Capabilities: 10/460 cSt - heater options for up to 1000 cSt
- Oil (ISO) Cleanliness: 16/15/12 - cleanliness codes will vary depending on operating conditions.
Many of these systems are built to order and are customized to your application. Give us a call at 1-630-922-5020 or send us an email for more information.
