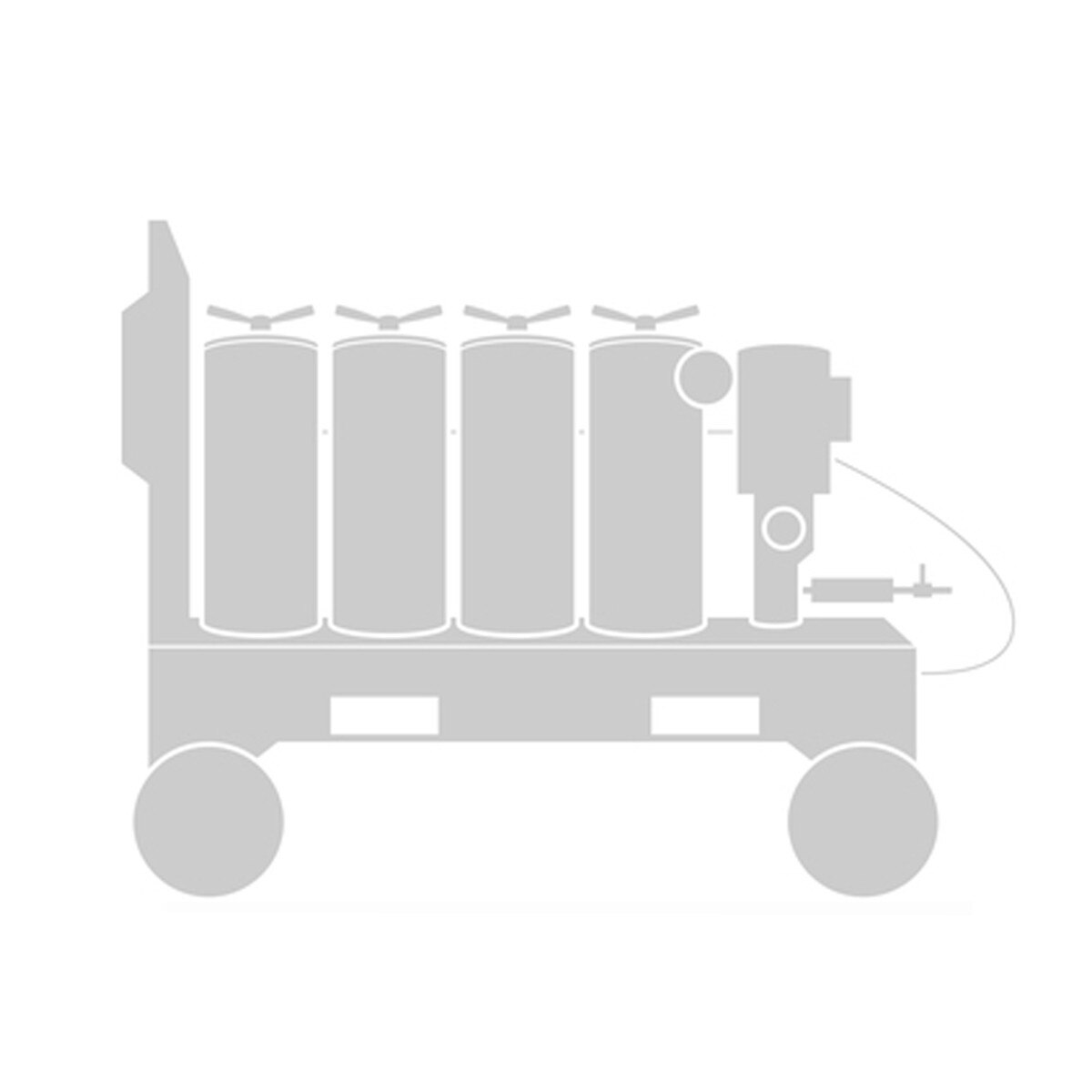

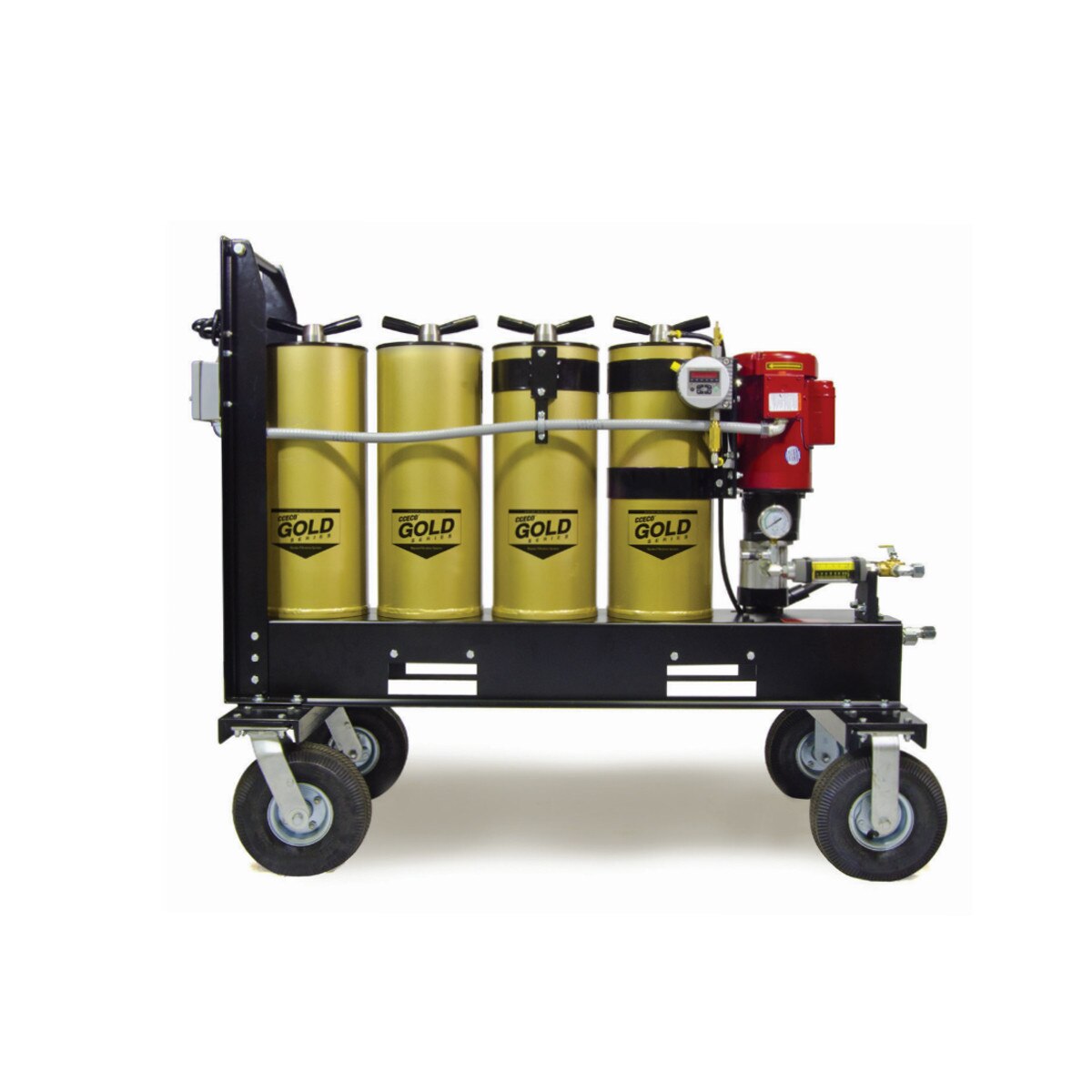

ForFluids Gold Filter Cart Series - 400, 4 Large Housings - 10 GPM

This rugged & portable by-pass filtration system far exceed industry standards, filtering down to 1 micron will maintain cleanliness levels several grades cleaner than brand new oil, dramatically extending the life of lubricated components and oil. Increase filtration accuracy prevents wear in hydraulic, gear, and diesel engine oil systems. Extending equipment life saves you time, money, and resources.

Maximum contaminant holding capacity and water removal with depth filtration increases reliability and productivity for your most critical assests. Our GFC series offers full-time or scheduled, timed operation for 24/7 filtration. Portable flexibility to filter bulk storage or actively running equipment. A variety of elements, plus a heater options, allows for filtration of vixcosities up to 1000 cSt.

Typical Applications:

• Mining Operations
• Power Plants
• Paper Mills
• Metal Stamping
• Injection Molding
• Marine Vessels
• Government Satellite Operations
• Hay Compression
• Bulk Storage
• Lube Rooms
• Construction
• Service Trucks

Features and Benefits:

• Filters down to 1 micron, several grades cleaner than new oil
• Moisture removal down to 100ppm
• Lower ISO codes
• Heavy duty wheels for easy mobility
• Laser Particle Counter option so you can always know you oil condition in real time
• Sample port for easily drawn oil samples
• Depth-style filtration for maximum dirt holding capacity and efficiency
• Reduces contamination failure in hydraulic systems, transmission fluids, mobile hydraulic systems, and stationary hydraulic systems.

Standard Technical Specifications:

• Motor Rating: 1 HP - 1.5 HP, 1,725 RPM
• Inlet Diameter: #12 JIC Male
• Outlet Diameter: #8 JIC Male
• Voltage: Single Phase / 3 Phase, Wash Down 110/220, 360/480
• Relief Valve Setting: 60 PSI
• Viscosity Capabilities: 10/460 cSt - heater options for up to 1000 cSt
• Oil (ISO) Cleanliness: 16/15/12 - codes will vary depending on operating conditions
