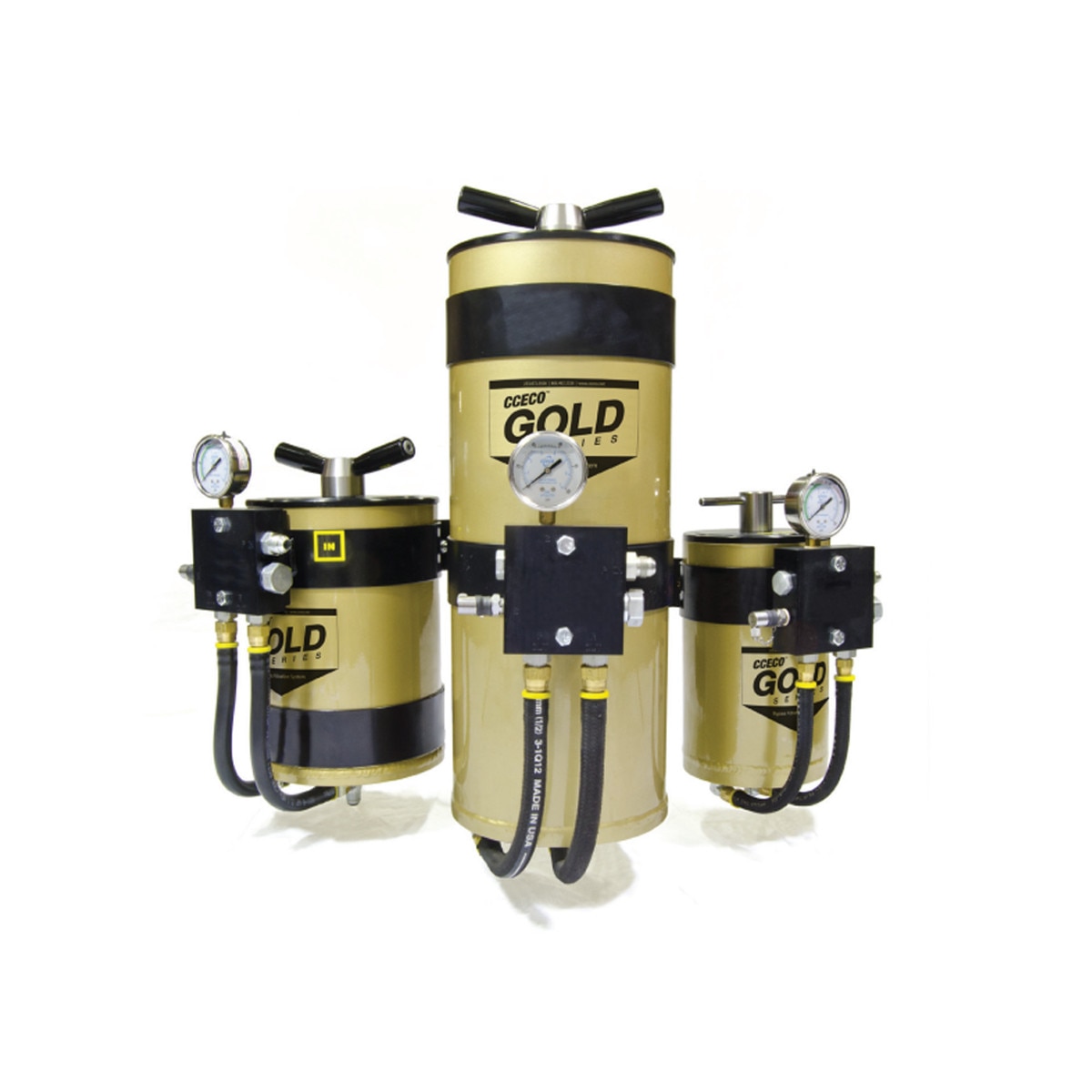

ForFluids Gold High Pressure Series - 25, 1 Small Housing - .75 GPM

Gold High Pressure units tap into high pressure systems, bleeding off a small amount of oil, eliminating the need for external pumps and additional power sources. Sample parts are provided for easy oil sampling. No tools necessary for element changes with T-bar style handles. And has the option of adding a laser particle counter so you can always know you oil condition in real time.

By filtering down to 1 micron, our units maintain cleanliness levels several grades cleaner than brand new oil, which significantly extends the life of components and oil. Preventing contamination wear for critical lubricated componts saves significant time, money, and resources.

Typical Applications:

• Mining Operations
• Power Plants
• Paper Mills
• Metal Stamping
• Injection Molding
• Marine Vessels
• Government Satellite Operations
• Hay Compression
• Construction
• Forestry
• Port Equipment

Features and Benefits:

• Filters down to 1 micron, several grades cleaner than new oil
• Moisture removal down to 100ppm
• Lower ISO codes
• Heater option allows for viscosities up to 1000 cSt
• Sample port for easily drawn oil samples
• Depth-style filtration for maximum dirt holding capacity and efficiency
• Reduces contamination failure in hydraulic systems, transmission fluids, mobile hydraulic systems, and stationary hydraulic systems

Standard Technical Specifications:

• Min./Max. Pressure at Flow Control Valve: 200-3,000/5,000 PSI
• Relief valve Setting: 60 PSI
• Viscosity Capabilities: 10/460 cSt - heater options for up to 1000 cSt
• Oil (ISO) Cleanliness: 16/15/12 - codes will vary depending on operating conditions
