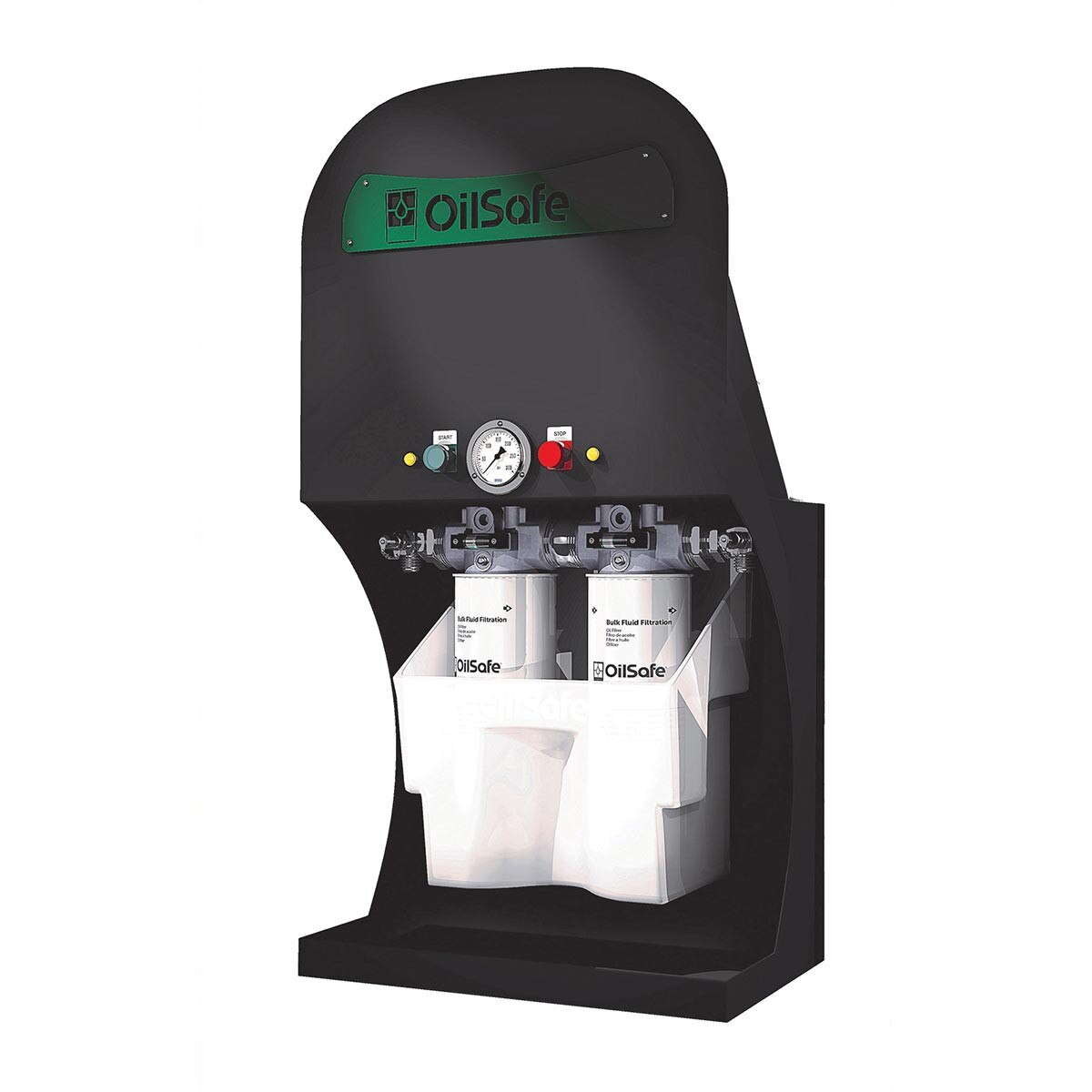

OilSafe Basic Wall Mount Stationary Filtration Panel
Details
OilSafe’s ground-breaking Filtration Units extend the life of your industrial oils, saving you time and money. They maintain purity from storage to application and eliminate cross-contamination with color-coded/error-proof, flat face, zero-leak quick connects. The cleanest and safest filtration systems on the market with three layers of spill containment to include a removable primary containment vessel, preventing spills and waste.
Performance:
OilSafe’s Filtration Units include a 1200RPM electric motor/pump to reduce oil shearing and electrostatic charges frequent in 1800RPM motor/pumps. Filters that are beta 2000 (99.95% efficient) with medium pressure, compared to low pressure types which can flex, distort and collapse. These filters have two seals which protect the filter ID and OD to reduce oil bypassing the filter element. They do not leak unfiltered oil across a bypass valve in the filter head, 100% of all oil passes through the filter media. All of these unique features equate to better particulate removal.
Safety:
Hands down, OilSafe Filtration Units lead industry with three layers of spill containment; a full front panel, lower secondary containment and a removable filter element containment for cleaner & safer element changes. The Pro Units include 24VDC controls, electrical overload protection and zero-leak quick connects.
BASIC
All the standard Safety, Error-Proofing and Performance features. Available with electric driven gear pump or air-powered pneumatic pump.
957770-Basic
Wall Mount Stationary-2 Filter-Electric with upstream and downstream sample ports.
Performance:
OilSafe’s Filtration Units include a 1200RPM electric motor/pump to reduce oil shearing and electrostatic charges frequent in 1800RPM motor/pumps. Filters that are beta 2000 (99.95% efficient) with medium pressure, compared to low pressure types which can flex, distort and collapse. These filters have two seals which protect the filter ID and OD to reduce oil bypassing the filter element. They do not leak unfiltered oil across a bypass valve in the filter head, 100% of all oil passes through the filter media. All of these unique features equate to better particulate removal.
Safety:
Hands down, OilSafe Filtration Units lead industry with three layers of spill containment; a full front panel, lower secondary containment and a removable filter element containment for cleaner & safer element changes. The Pro Units include 24VDC controls, electrical overload protection and zero-leak quick connects.
BASIC
All the standard Safety, Error-Proofing and Performance features. Available with electric driven gear pump or air-powered pneumatic pump.
957770-Basic
Wall Mount Stationary-2 Filter-Electric with upstream and downstream sample ports.
