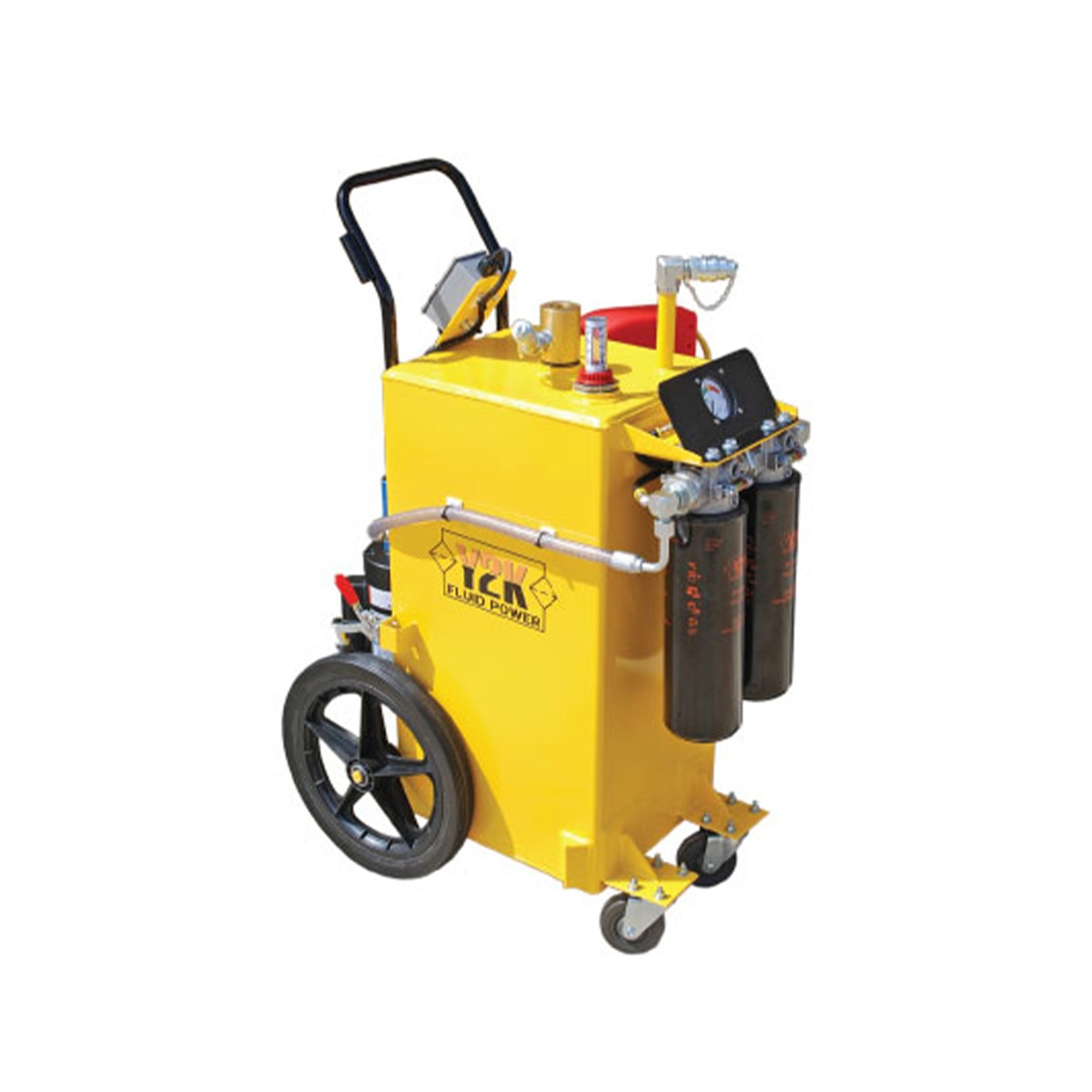

ForFluids Steel Tote Cart 5 GPM
Details
The Steel Tote is extremely versatile tote for many tasks. With its 30 gallon tank, this tote makes filtering, transferring, and topping off reservoirs a breeze. It can fill itself, be used as an off-line filter for cleaning different reservoirs, and to pump oil into various containers. This tote has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Tote products are 100% customizable upon request.
Typical Applications:
- Filtering contaminated systems
- Flushing new or repaired systems
- Pre-filtering new oil
- Transferring oil
- Topping off reservoirs or containers
- Dispensing new oil
Standard Features:
- Frame: Carbon Steel, 30 gallon tank with 4 wheels
- Paint: Multiple color options available
- Motor: 1 HP, 115vac, 60Hz or Pneumatic
- Filter Heads: Medium pressure, cast aluminum heads
- Pump: 5GPM Heavy duty, cast steel gear pump.
- Hoses: 7ft Clear PVC, steel reinforced hose, or hydraulic hose
- Cord Reel: 40' Retractable electric cord reel
- Desiccant Breather
Replacement Elements
- FF1066: 4 Micron BETA 2000 filter element
- FF1065: 7 Micron BETA 2000 filter element
- FF1063: 10 Micron BETA 1000 filter element
- FF1064: 25 Micrron BETA 2000 filter element
- FF1048WR: Water Removal Element
Weight: Approx 125 LBS
Dimensions: L 30" x W 19" x H 35"
Ships via truck freight
